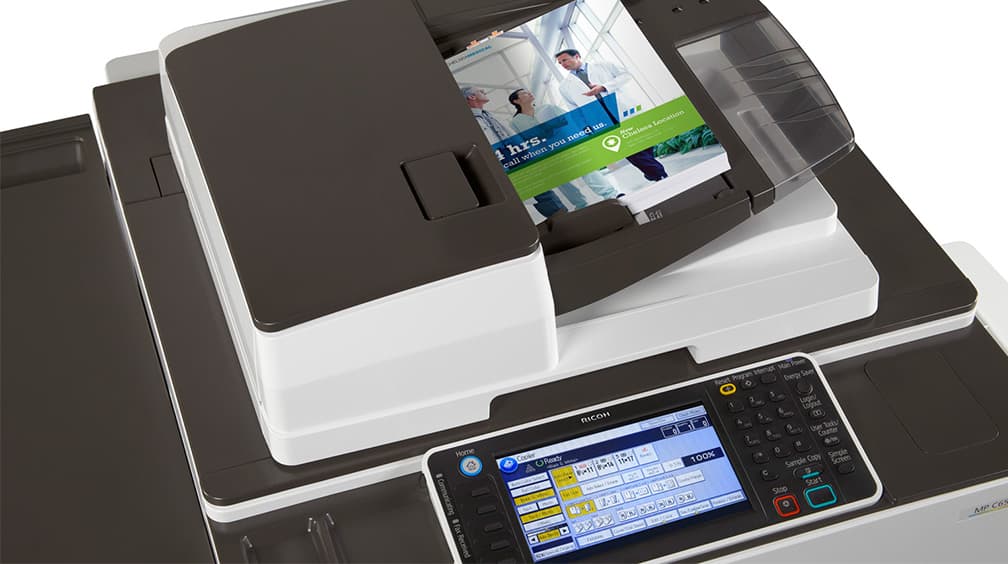

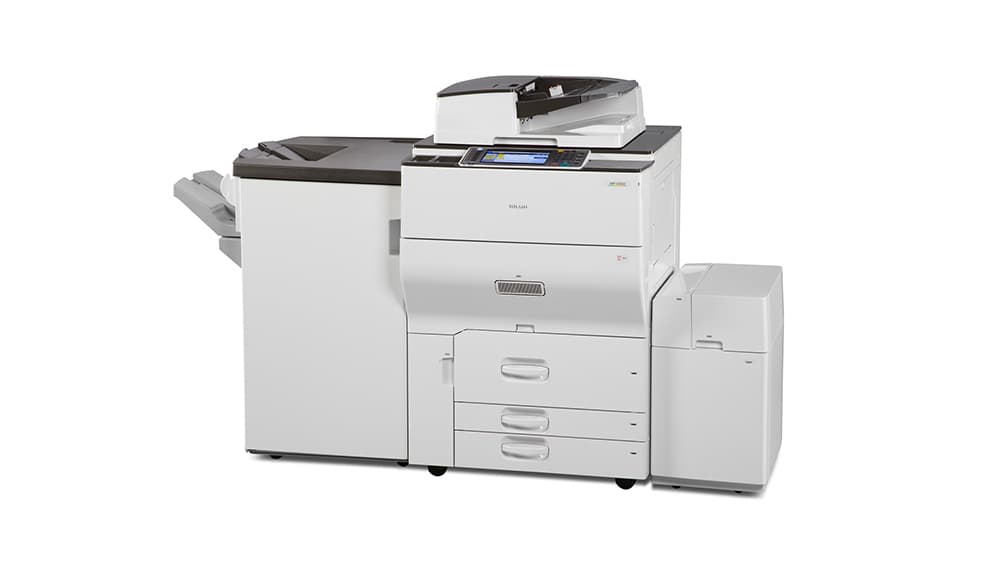

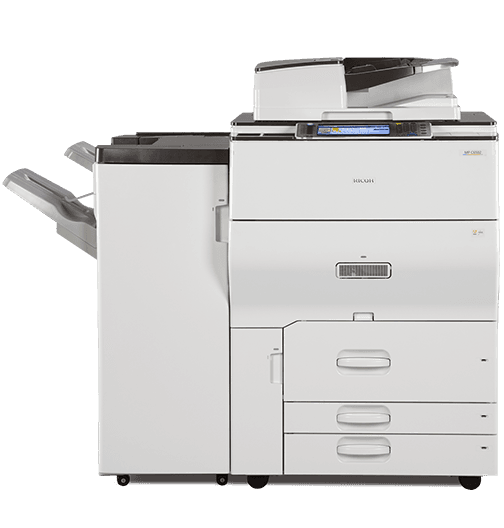

MP C6502

Fax Connection Unit Type M2

ID: 416663

• Enables users to send and receive faxes on a sub MFP via a main MFP. This option is required on both the Main MFP that has the Fax Option Type M2 installed and on the Sub MFP(s) needing remote fax.

Notes:

• Fax Option Type M2 is required to add this option.

Fax Option Type M2

ID: 416651

• Installation required to enable fax services: 33.6Kbps, approximately 2 Second Transmission Speed, Standard JBIG. Standard 320 Pages Memory. Includes standard Internet Fax (T.37), LAN Fax, IP-Fax (T.38), Fax Forwarding to Email & Paperless Fax function.

G3 Interface Unit Type M2

ID: 416655

• Up to two additional lines can be installed. For a maximum total of 3 lines.

Notes:

• Fax Option Type M2 is required to add this option.

Auto Trap Type FS-100

ID: 404602

• Provides a fast and simple way to ensure that your image output is optimized.

Notes:

• Color Controller E-25C is required to add this option.

EFI CPS V5.X ES-3000 1 year Digital

ID: 3000013158

• Contains Color Profiler software and ES-3000 spectrophotometer: Includes 1 year of phone support.

Notes:

• Color Controller E-25C is required to add this option.

EFI ES-3000

ID: 45202146

• Color measurement device for calibration and profiling. Enables fast, precise, and flexible color management that produces the highest color quality.

Notes:

• Color Controller E-25C is required to add this option.

EFI Productivity Pack for Fiery

ID: 007183MIU

• Aids in workflow productivity - helps meet tight turnaround times and to produce top notch color documents while achieving process automation.

Notes:

• Color Controller E-25C is required to add this option.

Fiery Color Controller E-22B

ID: 404501

• Optional Fiery Color Controller; can also be combined with the standard Print/Scan controller for standard scan features and Fiery print.

Notes:

• This option cannot be installed with IEEE 802.11a/g/n Interface Unit Type M2, IEEE1284 Interface Board Type A, PostScript3 Unit Type M2, SD Card for NetWare Printing Type M2 or IPDS Unit Type M2.

Fiery Compose FS-100

ID: 404582

• Fiery option that provides intuitive tools that make advanced document preparation simple and quick.

Notes:

• 1. Fiery Color Controller E-22B is required to add this option.
• 2. This option cannot be installed with IEEE 802.11a/g/n Interface Unit Type M2, IEEE1284 Interface Board Type A, PostScript3 Unit Type M2, SD Card for NetWare Printing Type M2 or IPDS Unit Type M2.

Fiery CPS V4.0 Software only

ID: 007096MIU

• For customers that have an ES-2000 Spectrophotometer and want Color Profiler V4 software: Includes 1 year of phone support.

Fiery Impose FS-100

ID: 404598

• Fiery option that helps to automate and streamline labor-intensive prepress tasks.

Notes:

• 1. Fiery Color Controller E-22B is required to add this option.
• 2. This option cannot be installed with IEEE 802.11a/g/n Interface Unit Type M2, IEEE1284 Interface Board Type A, PostScript3 Unit Type M2, SD Card for NetWare Printing Type M2 or IPDS Unit Type M2.

Hot Folders Type FS-100

ID: 404600

• Fiery option that enables the creation of special folders that can assign a group of print options.

Notes:

• Color Controller E-25C is required to add this option.

Spot On Type FS100

ID: 404601

• Enables you to reproduce custom or spot colors.

Notes:

• Color Controller E-25C is required to add this option.

BK5010 Rail Unit

ID: 413105

• Helps dock/undock the BK5010e Production Bookletmaker from the SR4110 Finisher.

Notes:

• BK5010e is required to add this option.

Book Folder BF5010e

ID: 404300

• Completes the booklets giving them the same professional flat finish as perfect bound books, with a printable spine with the appearance of a magazine.
• An additional accessory option for the BK5010e Production Bookletmaker.

Notes:

• BK5010e is required to add this option.

Booklet Finisher SR4100

ID: 416645

• The 2,000-Sheet Booklet Finisher allows multiple page documents to be professionally finished as paginated, duplexed saddle-stitched folded booklets. It provides three destinations for output, includes hole-punching capabilities as an option. The SR4100 utilizes a folding technology that creates "flatter" overall booklets in sizes up to 20-sheets (based on 20 lb. Bond).

Notes:

• SR4100 cannot be installed with these options: SR4090, SR4110, Copy Tray Type M2, Cover Interposer Tray CI4020, GBC StreamPunch Pro, Booklet Maker BK5010e, Trimmer TR5010e, CF5010 Cover Feeder, Book Folder BF5010e, BK5010 Rail Unit, Punch Unit PU5000 NA, Staple Set Type SR90 for BK5010e, Staple Set Type M for SR4110 or Staple Refill Type M for SR4110.

Booklet Maker BK5010e

ID: 404305

• When the system is configured with a SR4110 Finisher and the BK5010e Production Bookletmaker, the result is a fully-integrated system that produces saddle-stitched booklets up to 30-sheets at a time, the equivalent of a 120-page book. The finisher automatically adjusts for paper size and direction and supports booklet making directly from most drivers, making printing from any network seamless and easy.

Notes:

• SR4110 is required to add this option.

CF5010 Cover Feeder

ID: 413102

• Provides the ability to add pre-printed covers to booklets being made on the BK5010e.

Notes:

• BK5010e is required to add this option.

Cooling Fan Unit Type M2

ID: 417005

• Option for the Finisher SR4090, the Finisher SR4110 and the Finisher SR4100.
• This option is recommended for customers that print high color coverages on coated/thick paper.

Notes:

• 1. One of the following finishers is required to add this option: SR4090, SR4110 or SR4100.
• 2. Output Jogger Unit Type M2 is recommended when adding this option.
• 3. This option is recommended for customers that print high color coverage on coated/thick paper.

Copy Tray Type M2

ID: 416634

• Output tray that is only used when configuring the mainframe without a finisher.

Notes:

• Cover Tray Type M2 cannot be installed with these options or any option associated with these options: SR4090, SR4100, SR4110, Punch Unit PU5000 NA,CF5010 Cover Feeder, Punch Unit PU3060 NA, Staple Set Type SR90 for BK5010e, Staple Set Type M for SR4110, Staple Refill Type M for SR4110, Staple Set Type V for SR4090/SR4100, Staple Refill Type V for SR4090/SR4100, Staple Set Type W for SR4100 or Staple Refill Type W for SR4100.

Cover Interposer Tray CI4010

ID: 416639

• Single Cover Interposer tray that allows for pre-printed covers and inserts to be easily fed into the finishing workflow at the touch of a button. This finishing option eliminates the need for time-consuming offline manual insertion and reduces the wear and tear on originals.

Notes:

• One of the following finishers is required to add this option: SR4100 or SR4090.

Cover Interposer Tray CI4020

ID: 416640

• Compatible with Finisher SR4110 only.
• Dual Cover Interposer that allows pre-printed covers and inserts to be easily fed into the finishing workflow at the touch of a button. This option eliminates the need for time-consuming off-line manual insertion and reduces the wear and tear on originals.
• Weight: 99.21 lbs. (45 kg)
• W x D x H (inches): 4 x 28.7 x 50
• W x D x H (mm): 102 x 729 x 1,270

Notes:

• Cover Interposer Tray CI4020 cannot be installed with Cover Interposer Tray CI4040, Copy Tray Type M26, Finisher SR4120, Booklet Finisher SR4130, Mailbox CS4010, or any related options.

Finisher SR4090

ID: 416644

• For offices that produce collated and stapled sets of documents, the SR4090 helps shorten production time. The 3,000-Sheet Finisher offers multi-position staple finishing of up to 65 sheets for 8.5" x 11"/A4 sized media.

Notes:

• SR4090 cannot be installed with these options: SR4100, SR4110, Copy Tray Type M2, Cover Interposer Tray CI4020, GBC StreamPunch Pro, Booklet Maker BK5010e, Trimmer TR5010e, CF5010 Cover Feeder, Book Folder BF5010e, BK5010 Rail Unit, Punch Unit PU5000 NA, Staple Set Type SR90 for BK5010e, Staple Set Type M for SR4110, Staple Refill Type M for SR4110, Staple Set Type W for SR4100 or Staple Refill Type W for SR4100.

Finisher SR4110

ID: 416632

• This 3,000-sheet Finisher is ideal for offices that produce collated and stapled sets of documents. It offers 100-sheet, multi-position stapling, mixed sized stapling, optional hole-punching, and shift-sort collating.
• Weight: 165 lbs. (75 kg)
• W x D x H (inches): 31.7 x 28.7 x 38.6
• W x D x H (mm): 805 x 729 x 980

Notes:

• Finisher SR4110 cannot be installed with Copy Tray Type M26, Finisher SR4120, Booklet Finisher SR4130, or any related options.

GBC 32 Hole Pro Click Die Set

ID: 002493MIU

• Production use die set option for the GBC StreamPunch Pro. Only one can be installed inside the GBC StreamPunch Pro at a time.

Notes:

• 1. Production use die set option for use in the GBC StreamPunch Pro only.
• 2. Only 1 Die Set can be installed inside the GBC StreamPunch Pro at a time.

GBC Die Set 11 Hole (Velobind)

ID: 001451MIU

• Standard use die set option for the GBC StreamPunch Pro. Only one can be installed inside the GBC StreamPunch Pro at a time.

Notes:

• 1. Standard use die set option for use in the GBC StreamPunch Pro only.
• 2. Only 1 Die Set can be installed inside the GBC StreamPunch Pro at a time.

GBC Die Set 19 Hole (Cerlox)

ID: 001452MIU

• Standard use die set option for the GBC StreamPunch Pro. Only one can be installed inside the GBC StreamPunch Pro.

Notes:

• 1. Standard use die set option for use in the GBC StreamPunch Pro only.
• 2. Only 1 Die Set can be installed inside the GBC StreamPunch Pro at a time.

GBC Die Set 21 Hole (Twin Loop Wire 2:1)

ID: 001453MIU

• Standard use die set option for the GBC StreamPunch Pro. Only one can be installed inside the GBC StreamPunch Pro at a time.

Notes:

• 1. Standard use die set option for use in the GBC StreamPunch Pro only.
• 2. Only 1 Die Set can be installed inside the GBC StreamPunch Pro at a time.

GBC Die Set 3 Hole (Ring Binder)

ID: 001450MIU

• Standard use die set option for the GBC StreamPunch Pro. Only one can be installed inside the GBC StreamPunch Pro at a time.

Notes:

• 1. Standard use die set option for use in the GBC StreamPunch Pro only.
• 2. Only 1 Die Set can be installed inside the GBC StreamPunch Pro at a time.

GBC Die Set 32 Hole (Twin Loop Wire 3:1)

ID: 001454MIU

• Standard use die set option for the GBC StreamPunch Pro. Only one can be installed inside the GBC StreamPunch Pro at a time.

Notes:

• 1. Standard use die set option for use in the GBC StreamPunch Pro only.
• 2. Only 1 Die Set can be installed inside the GBC StreamPunch Pro at a time.

GBC Die Set 44 Hole (Color Coil)

ID: 001455MIU

• Standard use die set option for the GBC StreamPunch Pro. Only one can be installed inside the GBC StreamPunch Pro at a time.

Notes:

• 1. Standard use die set option for use in the GBC StreamPunch Pro only.
• 2. Only 1 Die Set can be installed inside the GBC StreamPunch Pro at a time.

GBC Pro 19 Hole HD Die Set

ID: 404416

• Production use die set option for the GBC StreamPunch Pro. Only one can be installed inside the GBC StreamPunch Pro at a time.

Notes:

• 1. Production use die set option for use in the GBC StreamPunch Pro only.
• 2. Only 1 Die Set can be installed inside the GBC StreamPunch Pro at a time.

GBC Pro 3 Hole HD Die Set

ID: 404415

• Production use die set option for the GBC StreamPunch Pro.
• Only one can be installed inside the GBC StreamPunch Pro at a time.

Notes:

• 1. Production use die set option for use in the GBC StreamPunch Pro only.
• 2. Only 1 Die Set can be installed inside the GBC StreamPunch Pro at a time.

GBC Pro 44 Hole HD Die Set

ID: 404417

• Production use die set option for the GBC StreamPunch Pro. Only one can be installed inside the GBC StreamPunch Pro at a time.

Notes:

• 1. Production use die set option for use in the GBC StreamPunch Pro only.
• 2. Only 1 Die Set can be installed inside the GBC StreamPunch Pro at a time.

GBC StreamPunch Pro

ID: 404412

• Customer replaceable punch option (note: option color may not match mainframe MFP).

Notes:

• 1. SR4110 is required to add this option.
• 2. Requires the purchase of at least one GBC die set.

Mail Box CS4010

ID: 416633

• The 9-Bin Mailbox offers workgroups the ability to separate and stack document output to designated bins directly from the print driver. This option helps keep workflows streamlined and organized.
• Weight: 33 lbs. (15 kg)
• W x D x H (inches): 21.26 x 23.62 x 25.98
• W x D x H (mm): 540 x 600 x 660

Notes:

• 1. One of the following finishers is required: SR4150 or Booklet Finisher SR4160.
• 2. Mail Box CS4010 cannot be installed with Copy Tray Type 9002

Multi-Folding Unit FD4000

ID: 415908

• Provides automatic inline document folding with the ability to deliver folded output in six different patterns; Half-Fold, Letter Fold-In (Tri-Fold), Letter Fold-Out (Tri-Fold), Gate-Fold, Double Parallel Fold (Four-Fold), and Z-Fold. The Multi-Folding Unit is ideal for companies that want to produce professionally finished documents such as newsletters, brochures, menus, and marketing materials in-house.
• Weight: 208.82 lbs. (92 kg)
• W x D x H (inches): 18.5 x 28.7 x 38.6
• W x D x H (mm): 470 x 729 x 980

Notes:

• One of the following finishers is required to add this option: Finisher SR4120, Finisher SR4080, or Booklet Finisher SR4130.

Output Jogger Unit Type M2

ID: 416631

• Aligns and straightens output delivered to either the Finisher SR4090 or the Booklet Finisher SR4100.

Notes:

• One of the following finishers is required to add this option: SR4090 or SR4100.

Punch Unit PU5000

ID: 412983

• Optional hole punching unit for Finisher SR4110.

Notes:

• This option cannot be installed with Finisher SR4120 or Booklet Finisher SR4130.

Trimmer TR5010e

ID: 404299

• Trims off the excess "creep" caused by folding multiple sheets, resulting in a clean flush finish.
• An additional accessory option for the BK5010e Production Bookletmaker.

Notes:

• BK5010e is required to add this option.

Punch Unit PU3060

ID: 416612

• Optional hole punching unit for Finisher SR3230, Booklet Finisher SR3240, Finisher SR4120 or Booklet Finisher SR4130.

Notes:

• 1. One of the following finishers is required to add this option: Finisher SR3230, Booklet Finisher SR3240, Finisher SR4120 or Booklet Finisher SR4130.
• 2. This option cannot be installed with Finisher SR4080.

8.5" x 14" Paper Size Tray Type M2

ID: 416637

• Enables the feeding of 8.5" x 14" paper and 8.5" x 11" SEF paper (2,750 sheets) through the LCIT RT4020.
• Paper Weights up to 58 lb. Bond/216 g/m².
• Weight: 18.5 lbs. (8.4 kg)
• W x D x H (inches): 5.9 x 21.3 x 24.6
• W x D x H (mm): 150 x 541 x 625

Notes:

• LCIT RT4020 required.

A3/11"x17" Tray Unit Type M2

ID: 416641

• Converts the Tandem Tray, tray 1 on the main unit, to a single 11" x 17"/A3 tray.

LCIT RT4020

ID: 416699

• Provides an additional 4,400 sheets.
• Paper Sizes up to 8.5" x 11"/A4.
• Paper Weights up to 58 lb. Bond/216 g/m².
• Weight: 44.1 lbs. (20 kg)
• W x D x H (inches): 13.8 x 21.3 x 24.6
• W x D x H (mm): 351 x 541 x 625

Notes:

• LCIT RT4020 cannot be installed with LCIT RT4050.

LCIT RT4030 (13" x 19.2" DLT LCT)

ID: 416638

• 2,200 sheet Large Capacity Tray that supports paper sizes from 5.5" x 8.5" to 13" x 19.2" and up to 110 lb. Cover stock (300 gsm).

Notes:

• LCIT RT4030 cannot be installed with LCIT RT4020 or 8 1/2" x 14" Paper Size Tray Type M2.

Tab Sheet Holder Type M2

ID: 416642

• Allows users to set up and print on tabs to separate chapters within the document, eliminating the manual collation of document sets.
• Can be used in either Tray 2 or Tray 3, but not both.

Browser Unit Type M2

ID: 416666

• Used for Browser features like Integrated Cloud Environment (ICE). Also required with HotSpot MFP Option Type S to enable HotSpot printing. Not compatible with all websites.

Embedded HotSpot Option Type S

ID: 415620

• Required to enable HotSpot printing. One year HotSpot printing subscription service.

File Format Converter Type E

ID: 414007

• Required to convert formats and drag to desktop documents stored via Copy or Print mode.

Notes:

• File Format Converter Type E cannot be installed with IEEE1284 Interface Board Type A, IEEE802.11a/g/n Wireless Interface Type M2 or or USB Device Server Option Type M12.

IEEE1284 Interface Board Type A

ID: 411699

• For environments that require Parallel connectivity.
• Allows device connection with legacy computer equipment.

Notes:

• IEEE1284 Interface Board Type A cannot be installed with IEEE802.11a/g/n Wireless Interface Type M2, File Format Converter Type E or USB Device Server Option Type M12.

IEEE802.11a/g/n Wireless Interface Type M2

ID: 416572

• This option allows you to connect the device wirelessly to the LAN.

Notes:

• IEEE802.11a/g/n Wireless Interface Type M2 cannot be installed with IEEE1284 Interface Board Type A, File Format Converter Type E or USB Device Server Option Type M12.

IPDS Unit Type M2

ID: 416660

• Intelligent Printer Data Stream (IPDS); As a "genuine" IPDS solution built on original IBM® source code, our IPDS option provides more accurate interpretation of IPDS data. That means less errors and faster file processing than emulations. Plus, as an IBM® partner your customers can be assured of fast problem resolution and timely upgrades.

Notes:

• This option cannot be installed with Hot Folders Type FS-100, Auto Trap Type FS-100, Fiery Color Controller E-22B, Fiery Impose FS-100, Fiery Compose FS-100, Spot-On Type FS-100, Fiery Color Profiler Suite V4.0 or EFI Productivity Pack.

OCR Unit Type M2

ID: 416605

• This function embeds invisible texts on scanned images of PDF and enables users to search PDF files by arbitrary keywords. Searchable PDF files can be sent to email, folders and external media (SD/USB).

PostScript3 Unit Type M2

ID: 416657

• Required for Macintosh and PostScript printing environments. Recommended for printing more complex color and PDF files.

Notes:

• This option cannot be installed with Hot Folders Type FS-100, Auto Trap Type FS-100, Fiery Color Controller E-22B, Fiery Impose FS-100, Fiery Compose FS-100, Spot-On Type FS-100, Fiery Color Profiler Suite V4.0 or EFI Productivity Pack.

SD Card for NetWare Printing Type M2

ID: 416669

• Used by customers who print using Netware. This option is required for the following functions: Use of iPrint ports, SNMP via IPX and Scan to NCP (IPX, TCP/IP).

Notes:

• This option cannot be installed with Hot Folders Type FS-100, Auto Trap Type FS-100, Fiery Color Controller E-22B, Fiery Impose FS-100, Fiery Compose FS-100, Spot-On Type FS-100, Fiery Color Profiler Suite V4.0 or EFI Productivity Pack.

Unicode Font Package for SAP 1 Device License

ID: 413009

• Unicode Font Package for SAP - 1 seat license.

Unicode Font Package for SAP(R) 10 License

ID: 413010

• Supports multi-language printing for global business environments.

Unicode Font Package for SAP(R) 100 License

ID: 413011

• Supports multi-language printing for global business environments.

Copy Data Security Unit Type G

ID: 416391

• Prevents unauthorized copying of confidential documents.

ESP-XG-PCS-20820D 20 amp Power Filter

ID: 007138MIU

• Designed to provide a higher level of noise filtering and surge protection for devices that employ more sensitive and complex electronic components.
• Our Advanced Technical Support (ATS) recommends the use of power protection products to minimize potential electrical interference with products.

ESP-XG-PCS-20D

ID: 006429MIU

• Designed to provide a higher level of noise filtering and surge protection for devices that employ more sensitive and complex electronic components.
• Our Advanced Technical Support (ATS) recommends the use of power protection products to minimize potential electrical interference with products.

External Keyboard Bracket Only

ID: 007111MIU

• Mounting bracket for the External USB Keyboard.

Notes:

• Mounting Bracket only.

External USB Keyboard (No Bracket)

ID: 100266FNG

• External keyboard for inputting data with either SDK applications or embedded applications.

Notes:

• 1. External Keyboard Bracket Type M19 is required for this option.
• 2. External USB Keyboard (No Bracket) cannot be installed with the NFC Card Reader Type M19.

Memory Unit Type B 32MB

ID: 001342MIU

• Increases fax memory to 2,240 pages and fax resolution to 400 x 400 dpi.

Notes:

• Fax Option Type M2 is required for this accessory.

Optional Counter I/F Type A

ID: 413012

• Optional 20-Pin Interface used to attach external key counter or key card device.

Smart Card Reader Built-in Unit Type M2

ID: 416729

• For use with Ricoh & third party software solutions. The smart card reader and its cable will be covered inside the mainframe when this option is attached. Not all card readers may be supported.
