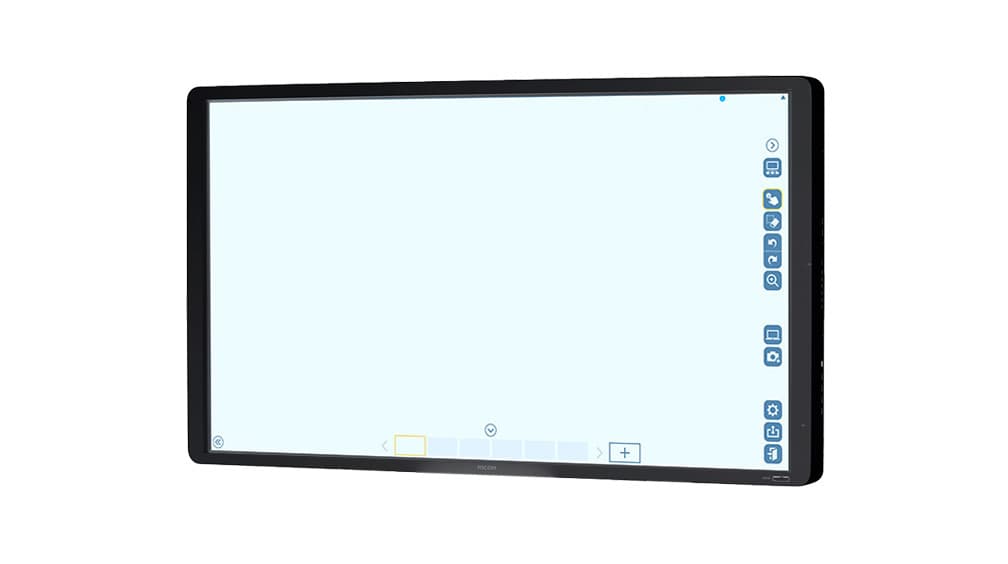

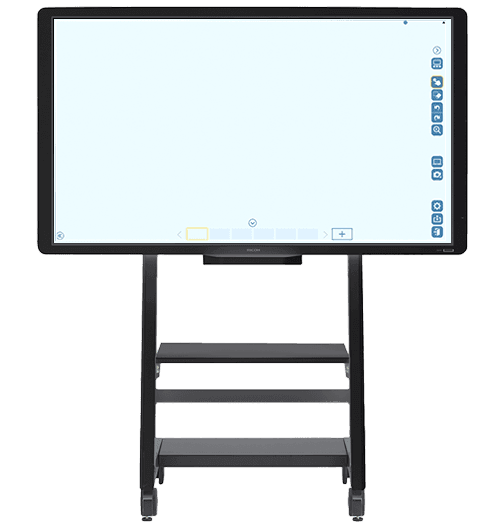

D6510BK for Windows Interactive Whiteboard

Discontinued

This product is no longer available for purchase

D6510BK for Windows

Interactive Whiteboard

ID: 432445W

Empower real-time collaboration

Work on a 65" HD LCD display
Impress with 1920 x 1080 HD resolution
Connect laptops and mobile devices
Work in the cloud and use your preferred apps with our optional Windows^® 10 controller

View Replacement

Select from the options below for support and more

Download Manuals

Download Support icon

Download Brochure

Download brochure icon

MyRicoh

If you are a current Ricoh Customer, you can use MyRicoh to get support for your products, purchase supplies, and much more.

Panel Size	Diagonal: 65" wide (1,651mm)
Display Type	Liquid crystal display
Backlight	LED system
Effective Display Area W x H	56.2" x 31.6" (1,428.5 x 803.5 mm)
Resolution	Maximum: 1,920 x 1,080 dpi
Display Color	Maximum: Over 1.07 billion colors
Brightness	Maximum: 350 cd/m²
Aspect Ratio	16 : 9
Contrast Ratio	4,000 : 1
Pixel Pitch	0.744 x 0.744 mm
Response Speen	8 ms (Grey to Grey, Ave.)
Viewing Angle HV	178°/178°
Display Orientation	Landscape

Technology	Shadow Sense
Touch Points	Standalone: 10
Touch Pen Request	>= 10 mm
Accuracy	+/-6.5 mm (over 90% area)
Operating System	Multi-touch (up to 10): Windows^® 7, 8, 8.1, 10 Single Touch: Windows^® 7, Mac^® OS 10.6+
Touch Output	USB 2.0 (Type B)
Cover Glass	Pretreated anti-glare 3 mm thick

Video Input	Display unit: Mini D-SUB15pin, DisplayPort (HDCP), HDMI (HDCP), DVI-D (HDCP)
Video Output	Displayport x 1
Audio Input	3.5 mm Line in Jack x 1 (For VGA, DVI)
Audio Output	Pin plugs (R+L) and terminals for 10W + 10W speakers
Interfaces	USB 2.0 TYPE B x 1 for touch control
Dimensions W x D x H	60.9" x 6.0" x 34.9" (1,546 x 154 x 888 mm)
Weight	132.3 lbs. (60 Kg)
Power Source	100 - 240 V, 50/60 Hz
Enhanced features	RS232 Control Daisy Chain, Picture Mode (including Low Blue Light mode), Backlight, Adaptive Contrast (Dimming Control), Brightness, Chroma, Phase, Sharpness, Color Temperature, Treble, Bass, Balance, Volume, Mute, Speaker, Audio Source, Picture-in-Picture, Picture-by-Picture, Aspect, Adjust Screen, Touch Feature, Language, Power Save, Control Setting, Touch Control Setting, Set Monitor ID, Advanced Features, Information
Remote sharing function	Up to 20 interactive whiteboards and projector systems Up to 50 remote devices (ipad, Android and PC)
Remote PC Operation	Yes

Type	Windows^®
CPU	Intel Core i5 6500TE 2.3GHz
Operating Systems	Windows 10
HDD	500 GB
RAM	16 GB
Interfaces	VGA, HDMI out, Microphone in (3.5mm), Speakers out (3.5mm)
Network Connection	Wired LAN: 10BASE-T/100BASET/ 1000BASE-T
