D7500 with Business Controller Interactive Whiteboard

Discontinued

This product is no longer available for purchase

D7500 with Business Controller

Interactive Whiteboard

ID: 730-432224B

Enhance real-time collaboration and help protect information

Work on a 75" 4K multi-touch display
Impress with 3840 x 2160 4K resolution
Connect laptops and mobile devices
Collaborate effectively and enhance data security with the business controller

View Replacement

Select from the options below for support and more

Download Manuals

Download Support icon

Download Brochure

Download brochure icon

MyRicoh

If you are a current Ricoh Customer, you can use MyRicoh to get support for your products, purchase supplies, and much more.

Panel Size	Diagonal: 75" wide (1,905mm)
Display Type	Liquid crystal display
Backlight	LED system
Effective Display Area W x H	65.9" x 37.5" (1673.9 x 952.5 mm)
Resolution	Maximum: 3,840 x 2,160 dpi (4K)
Display Color	Maximum: Over 1.07 billion colors
Brightness	Maximum: 410 cd/m²
Aspect Ratio	16 : 9
Contrast Ratio	1,200:1
Pixel Pitch	0.429 x 0.429 mm
Response Speen	8 ms (Grey to Grey, Ave.)
Viewing Angle HV	178°/178°
Display Orientation	Landscape

Technology	Shadow Sense
Touch Points	Standalone: 10
Touch Pen Request	>= 10 mm
Accuracy	+/-6.5 mm (over 90% area)
Operating System	Multi-touch (up to 10): Windows^® 7, 8, 8.1, 10 Single Touch: Windows^® 7, Mac^® OS 10.6+
Touch Output	USB 2.0 (Type B)
Cover Glass	Pretreated anti-glare 3 mm thick

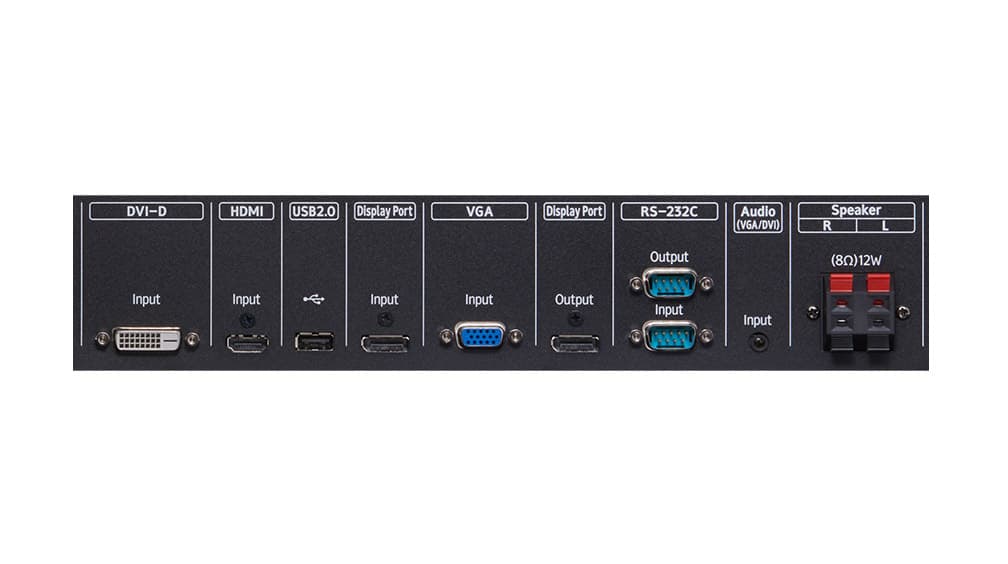

Video Input	Display unit: Mini D-SUB15pin, DisplayPort (HDCP), HDMI (HDCP), DVI-D (HDCP)
Video Output	Displayport x 1
Audio Input	3.5 mm Line in Jack x 1 (For VGA, DVI)
Audio Output	Pin plugs (R+L) and terminals for 10W + 10W speakers
Interfaces	USB 2.0 TYPE B x 1 for touch control
Dimensions W x D x H	70.2" x 7.8" x 41.5" (1,783 x 198 x 1,055 mm)
Weight	205.0 lbs. (93 Kg)
Power Source	100 - 240 V, 50/60 Hz
Enhanced features	RS232 Control Daisy Chain, Picture Mode (including Low Blue Light mode), Backlight, Adaptive Contrast (Dimming Control), Brightness, Chroma, Phase, Sharpness, Color Temperature, Treble, Bass, Balance, Volume, Mute, Speaker, Audio Source, Picture-in-Picture, Picture-by-Picture, Aspect, Adjust Screen, Touch Feature, Language, Power Save, Control Setting, Touch Control Setting, Set Monitor ID, Advanced Features, Information
Remote sharing function	Up to 20 interactive whiteboards and projector systems Up to 50 remote devices (ipad, Android and PC)
Remote PC Operation	Yes

Type	Business
CPU	Intel® Core i5 4590T 2.1GHz
Operating Systems	Windows® Embedded Standard 8 (64bit)
SSD	64 GB
RAM	16 GB
Interfaces	VGA, HDMI out, Microphone in (3.5mm), Speakers out (3.5mm)
Network Connection	Wired LAN: 10BASE-T/100BASET/ 1000BASE-T
