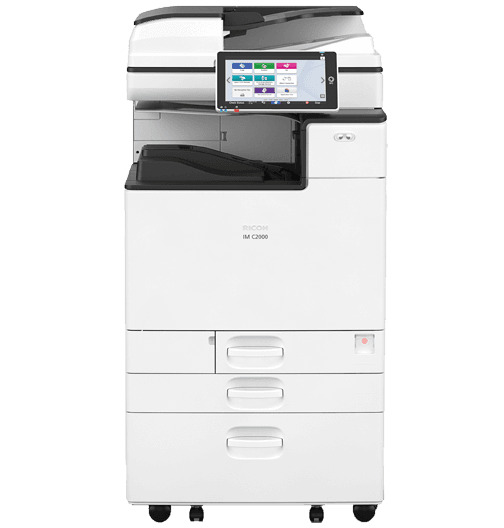

IM C2000

Fax Memory Unit Type M19 64MB

ID: MX417518RA

• Increases fax memory to 4,800 pages and fax resolution to 400 x 400 dpi.

Fax Option Type M37

ID: 418600

• Installation required to enable fax services: 33.6 kbps, approximately 2 second transmission speed, standard JBIG, and standard 320 Pages Memory. Includes standard Internet Fax (T.37), LAN Fax, IP-Fax (T.38), Fax Forwarding to Email & Paperless Fax function.

G3 Interface Unit Type M37

ID: 418530

• Up to two additional lines can be installed for a maximum total of 3 lines.

Notes:

• Fax Option Type M37 must be selected to add this option.

1 Bin Tray BN3130

ID: 418376

• Paper Size 5.5" x 8.5" to 11" x 17" (A5 - A3)
• Paper Weight 14 – 80 lb. Bond/166 lb. Index (60 – 300 g/m2)
• Tray Capacity 125 Sheets

Booklet Finisher SR3270 (1,000-sheet)

ID: 418335

• 1,000-sheet Booklet Finisher.
• Allows documents to be professionally finished as paginated, saddle-stitched booklets. It provides three destinations for output, and offers optional hole punching. Ideal for the production of program guides, instruction sheets, newsletters and meeting agendas.
• Supports paper sizes up to 12" x 18".
• Weight: 95.9 lbs. (43.5 kg)
• W × D × H (inches): 22.6 × 24.4 × 37.8
• W × D × H (mm): 574 × 620 × 960

Notes:

• 1. Either Bridge Unit BU3090 or Internal Multi-fold Unit FD3010 must be added to the configuration with any External Finisher.
• 2. One of the following options must be selected to add this finisher: Paper Feed Unit PB3280, Paper Feed Unit PB3300, Paper Feed LCIT PB3290 or Cabinet Type F.
• 3. Booklet Finisher SR3270 cannot be installed with Internal Shift Tray SH3080, Internal Finisher SR3250, Finisher SR3260-SR3280 or any related options.

Bridge Unit BU3090

ID: 418345

• A required accessory when the main unit is configured with an external finisher. The Bridge Unit transports pages from the standard exit area into a Finisher for inline stapling or hole punching.

Internal Finisher SR3250 (500 sheet)

ID: 418378

• 500-sheet Internal Finisher provides multi-position stapling and optional hole punching.
• Recommended for offices with limited floor space.
• Supports paper sizes up to 12" x 18".
• Weight: 28.2 lbs. (12.8 kg)
• W × D × H (inches): 21.5 × 20.6 × 6.7
• W × D × H (mm): 546 × 523 × 170

Notes:

• Internal Finisher SR3250 cannot be installed with Internal Shift Tray SH3080, Internal Multi-fold Unit FD3010, Finisher SR3260, Booklet Finisher SR3270 or any related options.

Internal Finisher SR3300 (Stapleless)

ID: 418341

• 250-sheet Stapleless Internal Finisher with staple-less finishing up to 5 sheets (20 lb. Bond).
• Ideal for customers such as the food industry and schools that are concerned with binding papers with metal staples.
• Paper sizes up to 12" x 18".
• Weight: 21.6 lbs. (9.8 kg)
• W × D × H (inches): 17.1 × 20.3 × 5.9
• W × D × H (mm): 434 × 516 × 150

Notes:

• 1. Hole punching is not supported.
• 2. Internal Finisher SR3300 cannot be installed with Internal Shift Tray SH3080, Internal Finisher SR3250, Booklet Finisher SR3270 or any related options.

Internal Shift Tray SH3080

ID: 418343

• The Internal Shift Tray enables the system to output copies as sets in sequential order. Each time the copies of one set or a job are delivered, the next copy is shifted to separate each set or job.
• Holds 250 sheets of 8.5" x 11"/A4 or smaller and holds 125 sheets of 8.5" x 14" or larger.
• Supports paper sizes up to 12" x 18".
• Weight: 3.1 lbs. (1.3 kg)
• W × D × H (inches): 16.5 × 19.3 × 4.2
• W × D × H (mm): 419 × 490 × 107

Notes:

• Internal Shift Tray SH3080 cannot be installed with Internal Finisher SR3250, Internal Multi-fold Unit FD3010, Finisher SR3260, Booklet Finisher SR3270, Finisher SR3280 or any related options.

Punch Unit PU3070 NA

ID: 418327

• Optional hole punching for Internal Finisher SR3250.
• Supports paper sizes up to 11" x 17".

Punch Unit PU3080 NA

ID: 418381

• Optional hole punching for the Finisher SR3260, Booklet Finisher SR3270, Finisher SR3320, and Booklet Finisher SR3330.
• Supports paper sizes up to 11" x 17".

Cabinet

ID: 100478FNG

• Provides businesses with a convenient option for the storage of supplies and paper.
• Can only be configured with the standard configuration.
• Weight: 32.3 lbs. (14.7 kg)
• W x D x H (inches): 23.1 x 26.7 x 10
• W x D x H (mm): 587 x 678 x 254

Notes:

• Cabinet cannot be installed with Caster Table Type M3, Paper Feed Unit PB3220, Paper Feed Unit PB3240, Paper Feed Unit PB3250 or Paper Feed Unit PB3260.

Caster Table Type M3

ID: 416737

• The caster table must be added to the configuration when the PB3250 Paper Feed Unit is selected. It provides a platform with wheels to easily move the device.

Notes:

• 1. Paper Feed Unit PB3250 is required for this option.
• 2. Caster Table Type M3 can only be installed with Paper Feed Unit PB3250.

Paper Feed Unit PB3270 (550 x 1)

ID: 418355

• Recommended paper feed unit for environments that prefer their system at the lowest height possible, making it easier for all users to access the device (Section 508).
• Provides an additional 550 sheets.
• Paper sizes up to 12" x 18".
• Paper weights up to 80 lb. Bond/166 lb. Index (300g/m²).
• Weight: 24 lbs. (13 kg)
• W × D × H (inches): 23.1 × 27 × 4.7
• W × D × H (mm): 587 × 686 × 119

Paper Feed Unit PB3300 (550 x 2)

ID: 418352

• Provides an additional 1,100 sheets.
• Paper sizes up to 12" x 18".
• Paper weights up to 80 lb. Bond/166 lb. Index (300 g/m²).
• Weight: 50.7 lbs. (23 kg)
• W × D × H (inches): 23.1 × 27 × 9.7
• W × D × H (mm): 587 × 686 × 246

Notes:

• Paper Feed Unit PB3300 or PB3280 cannot be installed with Paper Feed LCIT PB3290 or Cabinet Type F.

Banner Paper Guide Tray Type M19

ID: 417485

• Recommended when printing on banner paper to avoid paper skew.
• Supports Paper Sizes up to 12.8" x 49".

Device Server Option Type M37

ID: 418398

• An interface board used to add an extra Ethernet port. Once installed, the option connects two Ethernet cables simultaneously: one to the machine's Ethernet port and one to the Ethernet port of the USB Device Server Option. An IP address can be assigned to each connection, and one machine can be used to print from two different network segments.

Notes:

• Device Server Option Type M37 cannot be installed with IEEE 802.11a/g/n Interface Unit Type M19 or File Format Converter Type M19.

File Format Converter Type M19

ID: 417508

• Required to convert formats and drag to desktop documents stored via Copy or Print mode.

Notes:

• File Format Converter Type M19 cannot be installed with the following options: IEEE 1284 Interface Board Type M19, IEEE 802.11a/g/n Interface Unit Type M19, or Extended USB Board Type M19.
• *Exception - The File Format Converter Type M19 can be installed with the following options on the MP C4504ex or MP C6004ex models: IEEE 1284 Interface Board Type M19, IEEE 802.11a/g/n Interface Unit Type M19, or Extended USB Board Type M19.

IEEE 802.11a/g/n Interface Unit Type M19

ID: 417493

• This option allows you to connect the device to an IEEE 802.11 a/b/g/n wireless LAN.

Imageable Area Extension Unit Type M19

ID: 417497

• Allows customers to print crop marks for proofing SRA3/12.6" documents.

Memory Unit Type M37 4GB

ID: MX418397RA

• Expands RAM from 2 GB to 4 GB.

Notes:

• Memory Unit Type M37 4GB cannot be installed with Color Controller E-25C or any related options.

OCR Unit Type M13

ID: 417430

• This function embeds invisible text on scanned images of PDF and enables users to search PDF files by arbitrary keywords. Searchable PDF files can be sent to email, folders, and external media (USB/SD Card).

Postscript3 Unit Type M37

ID: 417408

• Genuine Adobe® PostScript®3™ . Recommended for printing more complex color and PDF files.
• The IM C2500, IM C3000, IM C3500, IM C4500 and IM C6000 come with standard PostScript3 Emulation and PDF Direct Print Emulation. This option is available for customers who require True Adobe® workflows like Photoshop®, Illustrator® and PDF/X as well as additional font support. When enabled on the MFP, the standard PostScript3 Emulation and PDF Direct Emulation will be disabled.

VM Card Type M37

ID: 418410

• ONLY required to support any embedded software app that is developed on SDK-J (i.e. Java).

Notes:

• 1. Memory Unit Type M37 4GB must be selected to add this option.
• 2. If the embedded software app is developed on the SmartSDK (i.e. full-native Android), then the VM Card option and Memory options are NOT required.

ESP XG-PCS-15D Power Filter

ID: 006428MIU

• The ESP XG-PCS-15D power filter provides multi-stage power protection as well as line conditioning. Our Advanced Technical Support (ATS) recommends the use of Power Protection products to minimize potential electrical interference with products.

Notes:

• ESP XG-PCS-15D Power Filter cannot be installed with the ESP S1 Power Filter.

External Keyboard Bracket Type M19

ID: 417578

• This bracket is required for the installation of an External USB Keyboard.

Notes:

• 1. External USB Keyboard (No Bracket) is required to add this option.
• 2. This option cannot be installed with the Smart Card Reader Built-in Unit Type M19 or Keyboard Card Reader Bracket Type M3.

External USB Keyboard (No Bracket)

ID: 100266FNG

• External keyboard for inputting data with either SDK applications or embedded applications.

Notes:

• 1. External Keyboard Bracket Type M19 is required for this option.
• 2. External USB Keyboard (No Bracket) cannot be installed with the NFC Card Reader Type M19.

Key Counter Bracket Type M3

ID: 416869

• 4-Pin interface used to mount external key counter to MFP.

NFC Card Reader Type M37

ID: 418421

• Used to login and authenticate users via NFC card. The card reader and its cable will be covered inside the mainframe when this option is attached.

Optional Counter Interface Unit Type M12

ID: 417111

• 20-Pin interface used to attach external key counter or key card device.

Smart Card Reader Built-in Unit Type M37

ID: 418422

• This option is a cover and a card reader is not included.
• For use with Ricoh & third party software solutions. The smart card reader and its cable will be covered inside the mainframe when this option is attached. Not all card readers may be supported.
