| Configuration | Console |
|---|---|
| Printing Process | 4-Drum Method |

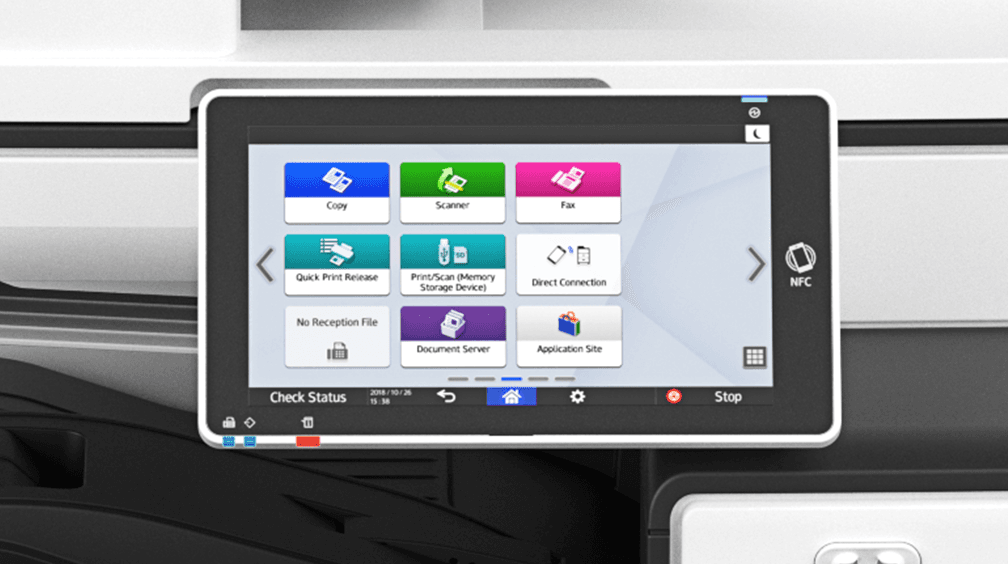

| Control Panel | 10.1" Smart Operation Panel |
| Output Speed Copy/Print | 25 ppm B&W & FC (LTR) |
| First Page Out Time | 5.1 seconds B&W 7.4 seconds Color |
| Warm-Up Time | 21 seconds |
| Resolution | 600 dpi |
| System Memory | 2 GB RAM/320 GB HDD Standard & 4 GB RAM/320 GB HDD Option |
| Maximum Copy Quantity | Up to 999 copies |
| Duplexing | Automatic (Standard) |
| Document Feeder Type | Automatic Reversing Document Feeder (ARDF) |
| Automatic Reversing Document Feeder (ARDF) | Original Capacity: 100 sheets Original Size: 5.5" x 8.5" — 11" x 17" (A5-A3) Paper Weight: Simplex: 11 - 34 lb. Bond (40 - 128 g/m2) Duplex: 14 -34 lb. Bond (52 - 128 g/m2) |
| Zoom Range | 25% - 400% in 1% increments |
| Supported Paper Sizes | 1st Paper Tray: 8.5" x 11" (A4) 2nd Paper Tray: 5.5" x 8" - 12" x 18" (SRA3, A6-A3, B4-B6), Envelopes Bypass: Up to 12" x 18", Envelopes Custom Sizes: Width: 3.5" - 12.6" (90 - 320 mm), Length: 5.8" - 49.6" (148 - 1260 mm) |
| Supported Paper Weights | Standard Trays: 16 - 80 lb. Bond/166 lb. Index (60 - 300 g/m2) Bypass Tray: 14 - 80 lb. Bond/166 lb. Index (52 - 300 g/m2) Duplex Unit: 14 - 45lb. Bond/142 lb. Index (52 - 169 g/m2) |
| Supported Paper Types | Plain, Recycled, Special, Colored, Letterhead, Cardstock, Pre-printed, Bond, Coated, Envelope, Label, OHP, Gloss |
| Standard Paper Capacity | 1,200 sheets (2 x 550 sheets + 100-Sheet Bypass Tray) |
| Maximum Paper Capacity | 2,300 sheets |
| Standard Output Capacity | 500 sheets 8.5" x 11" (A4) or smaller; 250 sheets (B4) or larger |
| Maximum Monthly Volume | 10000 |
| Power Source | 120V - 127V, 60Hz |
| Typical Electricity Consumption (TEC) | 0.287 kWh/week TEC value is measured based on the ENERGY STAR Ver.3.0 test method. |
| Power Consumption | Less than 1,584 W; Sleep Mode: 0.54W |
| Dimensions W x D x H | 23.1" x 27.0" x 35.9" (587 mm x 685 mm x 913 mm) |
| Weight | 200.6 lbs, 91 kg |
Fax Memory Unit Type M19 64MB
ID: MX417518RA
- Increases fax memory to 4,800 pages and fax resolution to 400 x 400 dpi.
Fax Option Type M37
ID: 418600
- Installation required to enable fax services: 33.6 kbps, approximately 2 second transmission speed, standard JBIG, and standard 320 Pages Memory. Includes standard Internet Fax (T.37), LAN Fax, IP-Fax (T.38), Fax Forwarding to Email & Paperless Fax function.
1 Bin Tray BN3130
ID: 418376
- Paper Size 5.5" x 8.5" to 11" x 17" (A5 - A3)
- Paper Weight 14 – 80 lb. Bond/166 lb. Index (60 – 300 g/m2)
- Tray Capacity 125 Sheets
Booklet Finisher SR3270 (1,000-sheet)
ID: 418335
- 1,000-sheet Booklet Finisher.
- Allows documents to be professionally finished as paginated, saddle-stitched booklets. It provides three destinations for output, and offers optional hole punching. Ideal for the production of program guides, instruction sheets, newsletters and meeting agendas.
- Supports paper sizes up to 12" x 18".
- Weight: 95.9 lbs. (43.5 kg)
- W × D × H (inches): 22.6 × 24.4 × 37.8
- W × D × H (mm): 574 × 620 × 960
Notes:
- 1. Either Bridge Unit BU3090 or Internal Multi-fold Unit FD3010 must be added to the configuration with any External Finisher.
- 2. One of the following options must be selected to add this finisher: Paper Feed Unit PB3280, Paper Feed Unit PB3300, Paper Feed LCIT PB3290 or Cabinet Type F.
- 3. Booklet Finisher SR3270 cannot be installed with Internal Shift Tray SH3080, Internal Finisher SR3250, Finisher SR3260-SR3280 or any related options.
Bridge Unit BU3090
ID: 418345
- A required accessory when the main unit is configured with an external finisher. The Bridge Unit transports pages from the standard exit area into a Finisher for inline stapling or hole punching.
Internal Finisher SR3250 (500 sheet)
ID: 418378
- 500-sheet Internal Finisher provides multi-position stapling and optional hole punching.
- Recommended for offices with limited floor space.
- Supports paper sizes up to 12" x 18".
- Weight: 28.2 lbs. (12.8 kg)
- W × D × H (inches): 21.5 × 20.6 × 6.7
- W × D × H (mm): 546 × 523 × 170
Notes:
- Internal Finisher SR3250 cannot be installed with Internal Shift Tray SH3080, Internal Multi-fold Unit FD3010, Finisher SR3260, Booklet Finisher SR3270 or any related options.
Internal Shift Tray SH3080
ID: 418343
- The Internal Shift Tray enables the system to output copies as sets in sequential order. Each time the copies of one set or a job are delivered, the next copy is shifted to separate each set or job.
- Holds 250 sheets of 8.5" x 11"/A4 or smaller and holds 125 sheets of 8.5" x 14" or larger.
- Supports paper sizes up to 12" x 18".
- Weight: 3.1 lbs. (1.3 kg)
- W × D × H (inches): 16.5 × 19.3 × 4.2
- W × D × H (mm): 419 × 490 × 107
Notes:
- Internal Shift Tray SH3080 cannot be installed with Internal Finisher SR3250, Internal Multi-fold Unit FD3010, Finisher SR3260, Booklet Finisher SR3270, Finisher SR3280 or any related options.
Punch Unit PU3070 NA
ID: 418327
- Optional hole punching for Internal Finisher SR3250.
- Supports paper sizes up to 11" x 17".
Punch Unit PU3080 NA
ID: 418381
- Optional hole punching for the Finisher SR3260, Booklet Finisher SR3270, Finisher SR3320, and Booklet Finisher SR3330.
- Supports paper sizes up to 11" x 17".
Cabinet
ID: 100478FNG
- Provides businesses with a convenient option for the storage of supplies and paper.
- Can only be configured with the standard configuration.
- Weight: 32.3 lbs. (14.7 kg)
- W x D x H (inches): 23.1 x 26.7 x 10
- W x D x H (mm): 587 x 678 x 254
Notes:
- Cabinet cannot be installed with Caster Table Type M3, Paper Feed Unit PB3220, Paper Feed Unit PB3240, Paper Feed Unit PB3250 or Paper Feed Unit PB3260.
Paper Feed Unit PB3300 (550 x 2)
ID: 418352
- Provides an additional 1,100 sheets.
- Paper sizes up to 12" x 18".
- Paper weights up to 80 lb. Bond/166 lb. Index (300 g/m<sup>2</sup>).
- Weight: 50.7 lbs. (23 kg)
- W × D × H (inches): 23.1 × 27 × 9.7
- W × D × H (mm): 587 × 686 × 246
Notes:
- Paper Feed Unit PB3300 or PB3280 cannot be installed with Paper Feed LCIT PB3290 or Cabinet Type F.
IEEE 802.11a/g/n Interface Unit Type M19
ID: 417493
- This option allows you to connect the device to an IEEE 802.11 a/b/g/n wireless LAN.
Memory Unit Type M37 4GB
ID: MX418397RA
- Expands RAM from 2 GB to 4 GB.
Notes:
- Memory Unit Type M37 4GB cannot be installed with Color Controller E-25C or any related options.
OCR Unit Type M13
ID: 417430
- This function embeds invisible text on scanned images of PDF and enables users to search PDF files by arbitrary keywords. Searchable PDF files can be sent to email, folders, and external media (USB/SD Card).
Postscript3 Unit Type M37
ID: 417408
- Genuine Adobe® PostScript®3™ . Recommended for printing more complex color and PDF files.
- The IM C2500, IM C3000, IM C3500, IM C4500 and IM C6000 come with standard PostScript3 Emulation and PDF Direct Print Emulation. This option is available for customers who require True Adobe® workflows like Photoshop®, Illustrator® and PDF/X as well as additional font support. When enabled on the MFP, the standard PostScript3 Emulation and PDF Direct Emulation will be disabled.
VM Card Type M37
ID: 418410
- ONLY required to support any embedded software app that is developed on SDK-J (i.e. Java).
Notes:
- 1. Memory Unit Type M37 4GB must be selected to add this option.
- 2. If the embedded software app is developed on the SmartSDK (i.e. full-native Android), then the VM Card option and Memory options are NOT required.
ESP XG-PCS-15D Power Filter
ID: 006428MIU
- The ESP XG-PCS-15D power filter provides multi-stage power protection as well as line conditioning. Our Advanced Technical Support (ATS) recommends the use of Power Protection products to minimize potential electrical interference with products.
Notes:
- ESP XG-PCS-15D Power Filter cannot be installed with the ESP S1 Power Filter.
Optional Counter Interface Unit Type M12
ID: 417111
- 20-Pin interface used to attach external key counter or key card device.
Smart Card Reader Built-in Unit Type M37
ID: 418422
- This option is a cover and a card reader is not included.
- For use with Ricoh & third party software solutions. The smart card reader and its cable will be covered inside the mainframe when this option is attached. Not all card readers may be supported.
