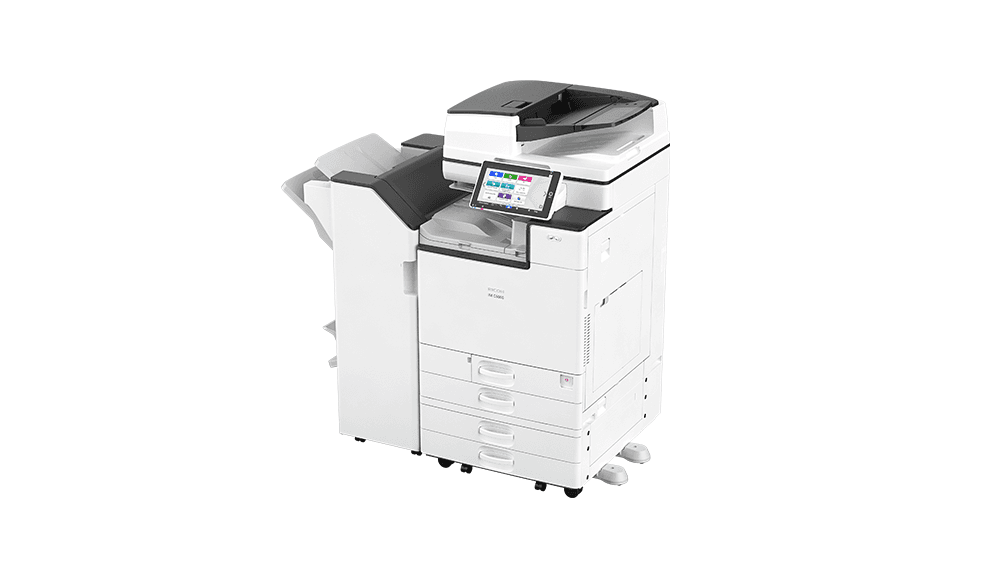

IM C6000

Fax Memory Unit Type M19 64MB

ID: MX417518RA

• Increases fax memory to 4,800 pages and fax resolution to 400 x 400 dpi.

Fax Option Type M37

ID: 418600

• Installation required to enable fax services: 33.6 kbps, approximately 2 second transmission speed, standard JBIG, and standard 320 Pages Memory. Includes standard Internet Fax (T.37), LAN Fax, IP-Fax (T.38), Fax Forwarding to Email & Paperless Fax function.

Auto Trap Type FS-100

ID: 404602

• Provides a fast and simple way to ensure that your image output is optimized.

Notes:

• Color Controller E-25C is required to add this option.

Color Controller E-25C

ID: 418433

• Optional Fiery Color Controller that can be configured with the standard Print/Scan controller for embedded scan features and Fiery print. Comes with 4 GB RAM memory upgrade and connector.

Notes:

• Color Controller E-25C cannot be installed with IEEE 802.11a/g/n Interface Unit Type M19, Memory Unit Type M37 4GB or Postscript3 Unit Type M37.

EFI Compose Digital

ID: 3000013504-PS1

• Provides intuitive tools that make advanced document preparation simple and quick.

Notes:

• Color Controller E-25C is required to add this option.

EFI CPS V5.X ES-3000 1 year Digital

ID: 3000013158

• Contains Color Profiler software and ES-3000 spectrophotometer: Includes 1 year of phone support.

Notes:

• Color Controller E-25C is required to add this option.

EFI ES-3000

ID: 45202146

• Color measurement device for calibration and profiling. Enables fast, precise, and flexible color management that produces the highest color quality.

Notes:

• Color Controller E-25C is required to add this option.

EFI Impose Digital

ID: 3000013503-PS1

• Helps to automate and streamline labor-intensive prepress tasks.

Notes:

• Color Controller E-25C is required to add this option.

EFI Productivity Pack for Fiery

ID: 007183MIU

• Aids in workflow productivity - helps meet tight turnaround times and to produce top notch color documents while achieving process automation.

Notes:

• Color Controller E-25C is required to add this option.

Hot Folders Type FS-100

ID: 404600

• Fiery option that enables the creation of special folders that can assign a group of print options.

Notes:

• Color Controller E-25C is required to add this option.

Spot On Type FS100

ID: 404601

• Enables you to reproduce custom or spot colors.

Notes:

• Color Controller E-25C is required to add this option.

1 Bin Tray BN3130

ID: 418376

• Paper Size 5.5" x 8.5" to 11" x 17" (A5 - A3)
• Paper Weight 14 – 80 lb. Bond/166 lb. Index (60 – 300 g/m2)
• Tray Capacity 125 Sheets

Booklet Finisher SR3270 (1,000-sheet)

ID: 418335

• 1,000-sheet Booklet Finisher.
• Allows documents to be professionally finished as paginated, saddle-stitched booklets. It provides three destinations for output, and offers optional hole punching. Ideal for the production of program guides, instruction sheets, newsletters and meeting agendas.
• Supports paper sizes up to 12" x 18".
• Weight: 95.9 lbs. (43.5 kg)
• W × D × H (inches): 22.6 × 24.4 × 37.8
• W × D × H (mm): 574 × 620 × 960

Notes:

• 1. Either Bridge Unit BU3090 or Internal Multi-fold Unit FD3010 must be added to the configuration with any External Finisher.
• 2. One of the following options must be selected to add this finisher: Paper Feed Unit PB3280, Paper Feed Unit PB3300, Paper Feed LCIT PB3290 or Cabinet Type F.
• 3. Booklet Finisher SR3270 cannot be installed with Internal Shift Tray SH3080, Internal Finisher SR3250, Finisher SR3260-SR3280 or any related options.

Bridge Unit BU3090

ID: 418345

• A required accessory when the main unit is configured with an external finisher. The Bridge Unit transports pages from the standard exit area into a Finisher for inline stapling or hole punching.

Finisher SR3260

ID: 418337

• 1,000-sheet Finisher.
• For offices that produce collated and stapled sets of documents, the SR3260 helps shorten production time. It offers 50-sheet, multi-position stapling, mixed sized stapling, optional hole punching, and shift-sort collating, as well as a staple-less binding capability of up to 5 sheets.
• Supports paper sizes up to 12" x 18".
• Weight: 75 lbs. (34 kg)
• W × D × H (inches): 22.6 × 24.4 × 37.8
• W × D × H (mm): 574 × 620 × 960

Notes:

• 1. Only one of these options can be installed on the device: Hybrid Finisher SR3260 (1,000 Sheet External Finisher. 50 -8.5"x11" Sheets Staple Capacity. Supports Paper Sizes up to 12"x18". 418337). Booklet Finisher SR3270 (1,000 Sheet Booklet Finisher. 50 -8.5"x11" Sheets Staple Capacity. Supports Paper Sizes up to 12"x18". 418335) Internal Finisher SR3250 (500 Sheet Internal Finisher. 50 -8.5"x11" Sheet Staple Capacity. Supports Paper Sizes up to 12"x18". 418378). Internal Shift Tray SH3080 (250-sheet sorter, supports paper sizes up to 12" x 18". 418343).
• 2. Must order either BU3090 Bridge Unit (418345) or Internal Multi-Fold Unit FD3010 (418339) with any external Finisher. Not compatible with Internal Finisher SR3250 and Internal Shift Tray SH3080.

Finisher SR3280

ID: 418385

• 3,000-sheet Finisher
• For offices that produce collated and stapled sets of documents, the SR3280 helps shorten production time. It offers 50-sheet, multi-position stapling, mixed sized stapling, optional hole punching, and shift-sort collating.
• Supports Paper Sizes up to 12" x 18".
• Weight: 83.8 lbs. (38 kg)
• W × D × H (inches): 25.9 × 24.1 × 37.8
• W × D × H (mm): 658 × 612 × 960

Notes:

• 1. Bridge Unit BU3090 or Internal Multi-Fold Unit FD3010 must be installed to add this option.
• 2. One of the following Paper Feed Units must be selected to add this finisher: Paper Feed Unit PB3280, Paper Feed Unit PB3300, Paper Feed LCIT PB3290 or Cabinet Type F.
• 3. Finisher SR3280 cannot be installed with Internal Shift Tray SH3080, Internal Finisher SR3250, Finisher SR3260, Booklet Finisher SR3270 or any related options.

Internal Multi-Fold Unit FD3010

ID: 418339

• Allows for the creation of professionally designed finished documents such as newsletters, brochures, and sales and marketing materials. Folding patterns include Z-Fold, Half-Fold, Outer Tri-Fold and Inner Tri-Fold.
• Paper sizes up to 12" x 18".
• Weight: 33.1 lbs. (15 kg)
• W × D × H (inches): 24.1 × 21.9 × 7.2
• W × D × H (mm): 612 × 556 × 183

Notes:

• 1. This option or Bridge Unit BU3090 must be installed when adding the following items: Finisher SR3260, Booklet Finisher SR3270, or Finisher SR3280.
• 2. Internal Multi-Fold Unit FD3010 cannot be installed with Internal Shift Tray SH3080, Internal Finisher SR3250, Internal Finisher SR3300 or any related options.

Internal Shift Tray SH3080

ID: 418343

• The Internal Shift Tray enables the system to output copies as sets in sequential order. Each time the copies of one set or a job are delivered, the next copy is shifted to separate each set or job.
• Holds 250 sheets of 8.5" x 11"/A4 or smaller and holds 125 sheets of 8.5" x 14" or larger.
• Supports paper sizes up to 12" x 18".
• Weight: 3.1 lbs. (1.3 kg)
• W × D × H (inches): 16.5 × 19.3 × 4.2
• W × D × H (mm): 419 × 490 × 107

Notes:

• Internal Shift Tray SH3080 cannot be installed with Internal Finisher SR3250, Internal Multi-fold Unit FD3010, Finisher SR3260, Booklet Finisher SR3270, Finisher SR3280 or any related options.

Punch Unit PU3080 NA

ID: 418381

• Optional hole punching for the Finisher SR3260, Booklet Finisher SR3270, Finisher SR3320, and Booklet Finisher SR3330.
• Supports paper sizes up to 11" x 17".

Punch Unit PU3090 NA

ID: 418332

• Optional hole punching for the Finisher SR3280.
• Supports paper sizes up to 11" x 17".

Cabinet

ID: 100478FNG

• Provides businesses with a convenient option for the storage of supplies and paper.
• Can only be configured with the standard configuration.
• Weight: 32.3 lbs. (14.7 kg)
• W x D x H (inches): 23.1 x 26.7 x 10
• W x D x H (mm): 587 x 678 x 254

Notes:

• Cabinet cannot be installed with Caster Table Type M3, Paper Feed Unit PB3220, Paper Feed Unit PB3240, Paper Feed Unit PB3250 or Paper Feed Unit PB3260.

LCIT RT3040

ID: 418358

• Provides an additional 1,500 sheets.
• Supports paper sizes of 8.5" x 11"/A4 only.
• Paper weights up to 80 lb. Bond/166 lb. Index (300 g/m²).
• Weight: 21.6 lbs. (10.5 kg)
• W × D × H (inches): 13.4 × 21.4 × 11.4
• W × D × H (mm): 340 × 544 × 290

Notes:

• 1. LCIT RT3040 cannot be installed with Cabinet Type F.
• 2. LCIT RT3040 must be configured with either Paper Feed Unit PB3280, Paper Feed Unit PB3300 or Paper Feed LCIT PB3290.

Paper Feed LCIT PB3290

ID: 418360

• Provides an additional 2,000 sheets.
• Paper sizes up to 8.5" x 11"/A4.
• Paper weights up to 80 lb. Bond/166 lb. Index (300 g/m²).
• Weight: 48.5 lbs. (22 kg)
• W × D × H (inches): 23.1 × 27 × 9.7
• W × D × H (mm): 587 × 686 × 246

Notes:

• Paper Feed LCIT PB3290 cannot be installed with Paper Feed Unit PB3280, Paper Feed Unit PB3300, Cabinet Type F or any related options.

Paper Feed Unit PB3280

ID: 418349

• Provides an additional 1,100 sheets.
• Paper sizes up to 12" x 18".
• Paper weights up to 80 lb. Bond/166 lb. Index (300 g/m²).
• Weight: 50.7 lbs. (23 kg)
• W × D × H (inches): 23.1 × 27 × 9.7
• W × D × H (mm): 587 × 686 × 246

Notes:

• Paper Feed Unit PB3280 cannot be installed with Paper Feed LCIT PB3290, Cabinet Type F or any related options.

IEEE 802.11a/g/n Interface Unit Type M19

ID: 417493

• This option allows you to connect the device to an IEEE 802.11 a/b/g/n wireless LAN.

Memory Unit Type M37 4GB

ID: MX418397RA

• Expands RAM from 2 GB to 4 GB.

Notes:

• Memory Unit Type M37 4GB cannot be installed with Color Controller E-25C or any related options.

OCR Unit Type M13

ID: 417430

• This function embeds invisible text on scanned images of PDF and enables users to search PDF files by arbitrary keywords. Searchable PDF files can be sent to email, folders, and external media (USB/SD Card).

Postscript3 Unit Type M37

ID: 417408

• Genuine Adobe® PostScript®3™ . Recommended for printing more complex color and PDF files.
• The IM C2500, IM C3000, IM C3500, IM C4500 and IM C6000 come with standard PostScript3 Emulation and PDF Direct Print Emulation. This option is available for customers who require True Adobe® workflows like Photoshop®, Illustrator® and PDF/X as well as additional font support. When enabled on the MFP, the standard PostScript3 Emulation and PDF Direct Emulation will be disabled.

VM Card Type M37

ID: 418410

• ONLY required to support any embedded software app that is developed on SDK-J (i.e. Java).

Notes:

• 1. Memory Unit Type M37 4GB must be selected to add this option.
• 2. If the embedded software app is developed on the SmartSDK (i.e. full-native Android), then the VM Card option and Memory options are NOT required.

ESP XG-PCS-15D Power Filter

ID: 006428MIU

• The ESP XG-PCS-15D power filter provides multi-stage power protection as well as line conditioning. Our Advanced Technical Support (ATS) recommends the use of Power Protection products to minimize potential electrical interference with products.

Notes:

• ESP XG-PCS-15D Power Filter cannot be installed with the ESP S1 Power Filter.

Optional Counter Interface Unit Type M12

ID: 417111

• 20-Pin interface used to attach external key counter or key card device.

Smart Card Reader Built-in Unit Type M37

ID: 418422

• This option is a cover and a card reader is not included.
• For use with Ricoh & third party software solutions. The smart card reader and its cable will be covered inside the mainframe when this option is attached. Not all card readers may be supported.
