| Configuration | Console |
|---|---|
| Scanning Element | One-Dimensional Solid Scanning Through CCD |
| Printing Process | Single Laser Beam Scanning & Electrophotographic Printing |
| Toner Type | Dry, Dual Component |

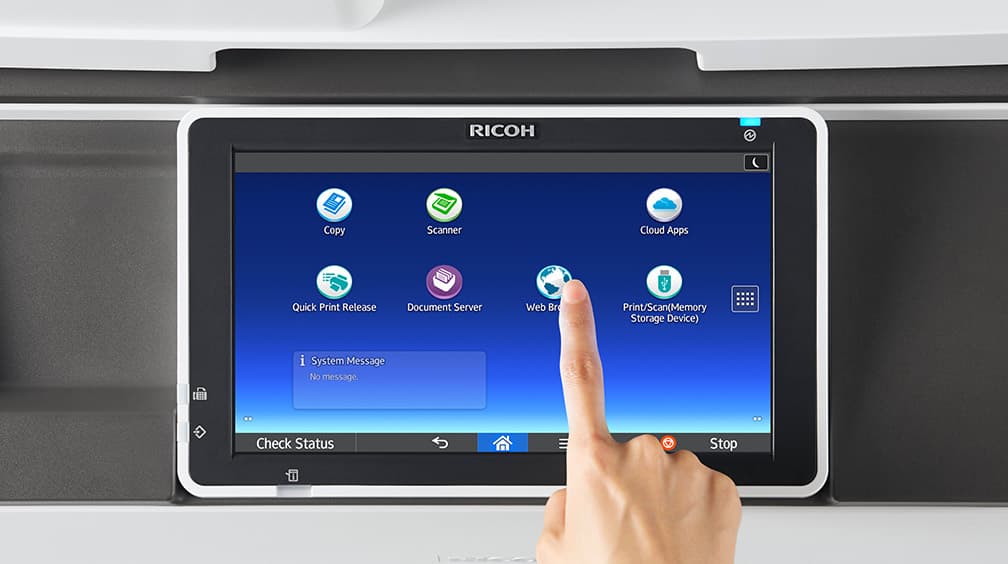

| Control Panel | 10.1" Smart Operation Panel |
| Output Speed Copy/Print | 35 ppm |
| First Page Out Time | 4.3 Seconds |
| Warm-Up Time | Less than 24 seconds |
| Recovery Time From Sleep Mode | 7.9 seconds |
| Resolution | 600 x 600 dpi |
| System Memory | 2 GB RAM + 320 GB HDD (Shared) |
| Maximum Copy Quantity | Up to 999 |
| Document Feeder Type | Automatic Reversing Document Feeder (ARDF) version or Single Pass Document Feeder (SPDF) version |
| Document Feeder Original Size | 5.5" x 8.5" - 11" x 17" (A5 - A3) |
| Document Feeder Paper Weight | Simplex: 11 - 34 lb. Bond (40 - 128 g/m2) Duplex: 14 - 34 lb. Bond (52 - 128 g/m2) |
| Document Feeder Capacity | ARDF: 100 sheets, SPDF: 220 sheets |
| Preset Reduction and Enlargement Ratios | Ratios 25%, 50%, 65%, 73%, 78%, 85%, 93%, 100%, 121%, 129%, 155%, 200%, 400% |
| Zoom Range | 25% to 400% in 1% increments |
| Original Type | Book/Sheet/Object |
| Maximum Original Size | Up to 11" x 17" |
| Supported Paper Sizes | Tray 1 & 2: 5.5" x 8.5" - 11" x 17" (A6 - A3) Bypass Tray: 5.5" x 8.5" - 12" x 18" (A6 - A3) |
| Supported Paper Weights | Tray 1 & 2: 16 - 80 lb. Bond (60 - 300 g/m2) Bypass: 14 - 80 lb. Bond (52 - 300 g/m2) Duplex: 14 - 68 lb. Bond (52 - 256 g/m2) |
| Supported Paper Types | Plain, Recycled, Colored, Special, Letterhead, Preprinted, Pre-punched, Bond, Cardstock, Envelope, OHP*, Label* |
| Standard Paper Capacity | 1,200 sheets (550 sheets x 2 trays, and 100-Sheet Bypass Tray) |
| Maximum Paper Capacity | 4,700 sheets (w/Tandem LCT + Side LCT) |
| Standard Output Capacity | 500 sheets |
| Maximum Monthly Volume | 30000 |
| Power Source | 120V/60Hz/12A |
| Typical Electricity Consumption (TEC) | 0.436 kWh/week TEC value is measured based on the ENERGY STAR Ver.3.0 test method. |
| Power Consumption | Less than 1.6kW |
| Dimensions W x D x H | 23.1" x 26.9" x 35.9" (587 x 684 x 913mm) w/ARDF 23.1" x 26.9" x 37.9" (587 x 684 x 913mm) w/SPDF |
| Weight | 156.5 lbs. (71) kg w/ARDF 168.6 lbs. (76.5 kg) w/SPDF |
| Standard Features | Auto Paper Select, Auto Tray Switch, Auto Image Density, Auto Text & Photo Separation, Auto Start, Auto Off Timer, Booklet/Magazine Copy, Shift/Erase/Margin Adjustment, Combine (Layout), Cover/Chapter/Slip Sheets Insertion, Image Rotation, Document Server (3,000 File Capacity) with Folder Management and Password Protection, Web Browser, Duplex, Electronic/Rotate Sorting, 8 Job Presets, 25 Job Programs, Negative/Positive, Sample Copy, Series Copy, Simplified Display, 1,000 User Codes, Stamps/Numbering, Interrupt Copy, Login/Logout Button, System Reset Timer, Import/Export of Preference Settings, Eco-Friendly Indicator, Centralized Address Book Management |
Fax Connection Unit Type M29
ID: 417860
- Enables users to send and receive faxes on a sub MFP via a main MFP. This option is required on both the Main MFP that has the Fax Option Type M29 installed and on the Sub MFP(s) needing remote fax.
Notes:
- Fax Option Type M29 is required to add this option.
Fax Memory Unit Type M19 64MB
ID: MX417518RA
- Increases fax memory to 4,800 pages and fax resolution to 400 x 400 dpi.
Fax Option Type M29
ID: 418601
- Installation required to enable fax services: 33.6 kbps, approximately 2 second transmission speed, standard JBIG, and standard 320 pages memory. Includes standard Internet Fax (T.37), LAN Fax, IP-Fax (T.38), Fax Forwarding to Email, and Paperless Fax function.
G3 Interface Unit Type M29
ID: 417868
- Up to two additional lines can be installed for a maximum total of 3 lines.
Notes:
- Fax Option Type M29 is required to add this option.
Booklet Finisher SR3220
ID: 417484
- 1,000-sheet Booklet Finisher.
- Allows documents to be professionally finished as paginated, saddle-stitched booklets. It provides three destinations for output, and offers optional hole-punching. Ideal for the production of program guides, instruction sheets, newsletters, and meeting agendas.
- Supports Paper Sizes up to 12" x 18".
- Weight: 87.3 lbs. (40 kg)
- W x D x H (inches): 22.2 x 24.4 x 37.8
- W x D x H (mm): 564 x 620 x 960
Notes:
- 1. The Bridge Unit BU3070 is required to add this option.
- 2. Booklet Finisher SR3220 cannot be installed with these options: Internal Shift Tray SH3070, Internal Finisher SR3130, Finisher SR3210, Finisher SR3230, or any related options.
Bridge Unit BU3070
ID: 417587
- A required accessory when the main unit is configured with an external finisher. The Bridge Unit transports pages from the standard exit area into a Finisher for online stapling or hole-punching.
Notes:
- One of the following finishers is required to add this option: Finisher SR3210, Finisher SR3230, Booklet Finisher SR3220, or Booklet Finisher SR3240.
Finisher SR3210
ID: 417483
- 1,000-sheet Finisher.
- For offices that produce collated and stapled sets of documents, the SR3210 helps shorten production time. It offers 50-sheet, multi-position stapling, mixed sized stapling, optional hole-punching, and shift-sort collating, as well as a staple-less binding capability of up to 5 sheets.
- Supports Paper Sizes up to 12" x 18".
- Weight: 60 lbs. (27 kg)
- W x D x H (inches): 22.2 x 24.4 x 37.8
- W x D x H (mm): 564 x 620 x 960
Notes:
- 1. Bridge Unit BU3070 is required to add this option.
- 2. Finisher SR3210 cannot be installed with these options: Internal Shift Tray SH3070, Internal Finisher SR3130, Finisher SR3230, Booklet Finisher SR3220, Booklet Finisher SR3240, or any related options.
Internal Finisher SR3130
ID: 417589
- 500-sheet Internal Finisher provides multi-position stapling and optional hole-punching.
- Recommended for offices with limited floor space.
- Supports Paper Sizes up to 12" x 18".
- Weight: 28.2 lbs. (12.8 kg)
- W × D × H (inches): 21.5 × 20.6 × 6.7
- W × D × H (mm): 546 × 523 × 170
Notes:
- Internal Finisher SR3130 cannot be installed with MP C6004ex, MP C6004ex TE, Internal Shift Tray SH3070, Internal Finisher SR3180, Finisher SR3210, Finisher SR3230, Booklet Finisher SR3220, Booklet Finisher SR3240, or any related options.
Internal Finisher SR3180
ID: 417593
- 250-sheet Stapleless Internal Finisher with staple-less finishing up to 5 sheets (20 lb. Bond).
- Paper Sizes up to 12" x 18".
- Weight: 21.6 lbs. (9.8 kg)
- W x D x H (inches): 17.1 x 20.3 x 5.9
- W x D x H (mm): 434 x 516 x 150
Notes:
- 1. Hole punching is not supported.
- 2. Internal Finisher SR3180 cannot be installed with Internal Shift Tray SH3070, Internal Finisher SR3130, Finisher SR3210, Booklet Finisher SR3220, or any related options.
Internal Shift Tray SH3070
ID: 416550
- The Internal Shift Tray enables the system to output copies as sets in sequential order. Each time the copies of one set or a job are delivered, the next copy is shifted to separate each set or job.
- Holds 250 sheets of 8.5" x 11" /A4 or smaller and holds 125 sheets of 8.5" x 14" or larger.
- Supports Paper Sizes up to 12" x 18".
- Weight: 3.1 lbs. (1.4 kg)
- W x D x H (inches): 16.5 x 19.3 x 4.2
- W x D x H (mm): 419 x 490 x 107
Notes:
- Internal Shift Tray SH3070 cannot be installed with Internal Finisher SR3130, Finisher SR3210, Finisher SR3230, Booklet Finisher SR3220, Booklet Finisher SR3240, or any related options.
One-Bin Tray BN3110
ID: 417585
- Provides an additional output tray above the standard Internal Tray or optional Bridge Unit/Internal Shift Tray/Internal Finisher.
- Holds 125 sheets.
- Allows user to separate print/fax output from copy.
- Supports paper sizes up to 11" x 17".
- Weight: 3.1 lbs. (1.4 kg)
- W × D × H (inches): 17.5 × 17.7 × 5.9
- W × D × H (mm): 445 × 450 × 150
Punch Unit PU3040 NA
ID: 416615
- Optional hole punching for the Internal Finisher SR3130.
- Supports Paper Sizes up to 11" x 17".
Notes:
- 1. SR3130 is required to add this option.
- 2. Punch Unit PU3040 NA cannot be installed with the Finisher SR3210, Finisher SR3230, Booklet Finisher SR3220, or Booklet Finisher SR3240.
Punch Unit PU3050 NA
ID: 416609
- Optional hole punching for the Finisher SR3210 or Booklet Finisher SR3220.
- Supports Paper Sizes up to 11" x 17".
Notes:
- 1. Finisher SR3210 or Booklet Finisher SR3220 is required to for this option.
- 2. Punch Unit PU3050NA cannot be installed with the Internal Finisher SR3130 or Internal Finisher SR3180.
Cabinet
ID: 100478FNG
- Provides businesses with a convenient option for the storage of supplies and paper.
- Can only be configured with the standard configuration.
- Weight: 32.3 lbs. (14.7 kg)
- W x D x H (inches): 23.1 x 26.7 x 10
- W x D x H (mm): 587 x 678 x 254
Notes:
- Cabinet cannot be installed with Caster Table Type M3, Paper Feed Unit PB3220, Paper Feed Unit PB3240, Paper Feed Unit PB3250 or Paper Feed Unit PB3260.
Caster Table Type M3
ID: 416737
- The caster table must be added to the configuration when the PB3250 Paper Feed Unit is selected. It provides a platform with wheels to easily move the device.
Notes:
- 1. Paper Feed Unit PB3250 is required for this option.
- 2. Caster Table Type M3 can only be installed with Paper Feed Unit PB3250.
LCIT PB3260
ID: 408116
- Provides an additional 2,000 sheets.
- Paper Sizes up to 8.5" x 11"/A4.
- Paper Weights up to 300 g/m<sup>2</sup>.
- Weight: 48.5 lbs. (22 kg)
- W x D x H (inches): 23.1 x 27 x 9.7
- W x D x H (mm): 587 x 686 x 246
Notes:
- LCIT PB3260 cannot be installed with Paper Feed Unit PB3240, Paper Feed Unit PB3250, Caster Table Type M3, or Cabinet Type F.
LCIT RT3030
ID: 416548
- Provides an additional 1,500 sheets.
- Paper Sizes up to 8.5" x 11"/A4.
- Paper Weights up to 80 lb. Bond/166 lb. Index (300 g/m<sup>2</sup>).
- Weight: 21.6 lbs. (9.8 kg)
- W x D x H (inches): 13.4 x 21.4 x 11.4
- W x D x H (mm): 340 x 544 x 290
Notes:
- 1. LCIT RT3030 cannot be installed with any of these Paper Bank options: Paper Feed Unit PB3250, Caster Table Type M3, or Cabinet Type F.
- 2. LCIT RT3030 must be configured with either the Paper Feed Unit PB3240 or PB3260.
Paper Feed Unit PB3220
ID: 417268
- Provides an additional 1,100 sheets.
- Paper Sizes up to 12" x 18".
- Paper Weights up to 80 lb. Bond/166 lb. Index (300 g/m<sup>2</sup>).
- Weight: 48.5 lbs. (22 kg)
- W x D x H (inches): 23.1 x 27 x 9.7
- W x D x H (mm): 587 x 686 x 246
Notes:
- Paper Feed Unit PB3220 cannot be installed with Paper Feed Unit PB3250, Caster Table Type M3, or Cabinet Type F.
Paper Feed Unit PB3250
ID: 408114
- Provides an additional 550 sheets.
- Paper Sizes up to 12" x 18".
- Paper Weights up to 300 g/m<sup>2</sup>.
- Weight: 24 lbs. (10.9 kg)
- W x D x H (inches): 23.1 x 27 x 4.7
- W x D x H (mm): 587 x 686 x 119
Notes:
- 1. Paper Feed Unit PB3250 cannot be installed with Cabinet Type F, Booklet Finisher SR3220 or any related options.
- 2. This option must be installed with Caster Table Type M3.
Embedded HotSpot Option Type S
ID: 415620
- Required to enable HotSpot printing. One year HotSpot printing subscription service.
Extended USB Board Type M19
ID: 417566
- Required for printing from USB Type B port.
Notes:
- Extended USB Board Type M19 cannot be installed with IEEE 1284 Interface Board Type M19, IEEE 802.11a/g/n Interface Unit Type M19, or File Format Converter Type M19.
File Format Converter Type M19
ID: 417508
- Required to convert formats and drag to desktop documents stored via Copy or Print mode.
Notes:
- File Format Converter Type M19 cannot be installed with the following options: IEEE 1284 Interface Board Type M19, IEEE 802.11a/g/n Interface Unit Type M19, or Extended USB Board Type M19.
- *Exception - The File Format Converter Type M19 can be installed with the following options on the MP C4504ex or MP C6004ex models: IEEE 1284 Interface Board Type M19, IEEE 802.11a/g/n Interface Unit Type M19, or Extended USB Board Type M19.
IEEE 1284 Interface Board Type M19
ID: 417596
- For environments that require parallel connectivity.
- Allows device connection with legacy computer equipment.
Notes:
- IEEE 1284 Interface Board Type M19 cannot be installed with IEEE 802.11a/g/n Interface Unit Type M19, File Format Converter Type M19, or Extended USB Board Type M19.
IEEE 802.11a/g/n Interface Unit Type M19
ID: 417493
- This option allows you to connect the device to an IEEE 802.11 a/b/g/n wireless LAN.
OCR Unit Type M13
ID: 417430
- This function embeds invisible text on scanned images of PDF and enables users to search PDF files by arbitrary keywords. Searchable PDF files can be sent to email, folders, and external media (USB/SD Card).
PostScript 3 Unit Type M29
ID: 417875
- PostScript option for customers that require true Adobe® PostScript® for Macintosh and PostScript environments.
- Recommended for printing more complex color and PDF files.
USB Device Server Option Type M19A
ID: 418105
- An interface board for adding an extra Ethernet port. If you install the USB Device Server Option, you can connect two Ethernet cables simultaneously: one to the machine's Gigabit Ethernet port and one to the Gigabit Ethernet port of USB Device Server Option. An IP address can be assigned to each connection and you can use one machine to print from different network segments.
Notes:
- USB Device Server Option Type M19A cannot be installed with IEEE 1284 Interface Board Type M19, IEEE 802.11a/g/n Interface Unit Type M19, File Format Converter Type M19, or Extended USB Board Type M19.
XPS Direct Print Option Type M29
ID: 417857
- Allows for direct printing of XPS type file formats.
ESP XG-PCS-15D Power Filter
ID: 006428MIU
- The ESP XG-PCS-15D power filter provides multi-stage power protection as well as line conditioning. Our Advanced Technical Support (ATS) recommends the use of Power Protection products to minimize potential electrical interference with products.
Notes:
- ESP XG-PCS-15D Power Filter cannot be installed with the ESP S1 Power Filter.
External Keyboard Bracket Type M3
ID: 416909
- This bracket is required for the installation of an External USB Keyboard.
Notes:
- 1. External USB Keyboard (No Bracket) is required to add this option.
- 2. External Keyboard Bracket Type M3 cannot be installed with the Smart Card Reader Built-in Unit Type M29.
External USB Keyboard (No Bracket)
ID: 100266FNG
- External keyboard for inputting data with either SDK applications or embedded applications.
Notes:
- 1. External Keyboard Bracket Type M19 is required for this option.
- 2. External USB Keyboard (No Bracket) cannot be installed with the NFC Card Reader Type M19.
Key Counter Bracket Type M3
ID: 416869
- 4-Pin interface used to mount external key counter to MFP.
NFC Card Reader Type M29
ID: 417863
- Used to log in and authenticate users via NFC card. The card reader and its cable will be covered inside the mainframe when this option is attached.
Notes:
- NFC Card Reader Type M29 cannot be installed with Smart Card Reader Built-in Unit Type M29 or SCR3310 v2 USB Smart Card Reader.
Optional Counter Interface Unit Type M12
ID: 417111
- 20-Pin interface used to attach external key counter or key card device.
SCR3310 v2 USB Smart Card Reader
ID: 005269MIU
- Card Reader only. No cards are provided. Used with Common Access Card (CAC)/Personal Identity Verification (PIV) Authentication Solution.
Notes:
- SCR3310 v2 USB Smart Card Reader cannot be installed with NFC Card Reader Type M29.
Smart Card Reader Built-in Unit Type M29
ID: 417864
- For use with Ricoh & third party software solutions. The smart card reader and its cable will be covered inside the mainframe when this option is attached. If using another type of card reader be sure reader dimensions do not exceed 63.5mm x 106mm x 22mm in size. Not all card readers may be supported.
Notes:
- Smart Card Reader Built-in Unit Type M29 cannot be installed with External USB Keyboard (No Bracket), External Keyboard Bracket Type M3, or NFC Card Reader Type M29.
