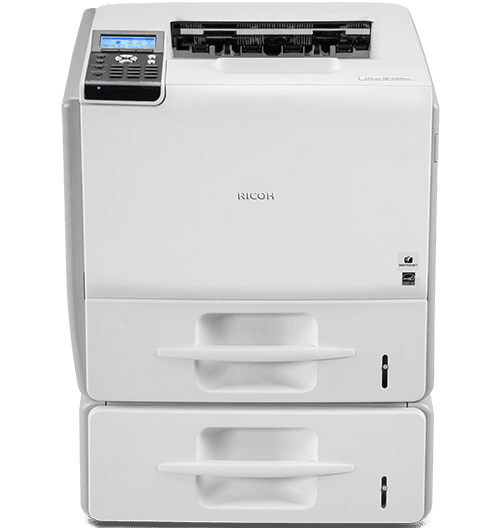

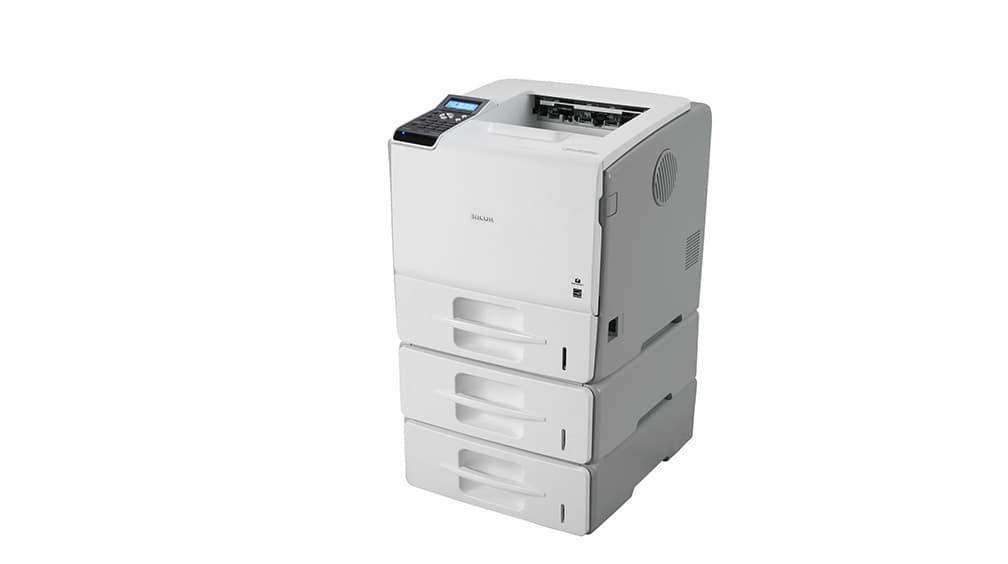

SP 5210DN

Medium Cabinet Type B

ID: 100465FNG

• Raises the SP 5200DN/SP 5210DN to a comfortable height for floor-standing configuration. Recommended when configuring the printer with one or two optional 500-sheet Paper Feed Units (TK1120/TK1120L/TK1120T only).
• W x D x H (inches): 15.7 x 17.1 x 14.17
• W x D x H (mm): 399 x 434 x 360

Notes:

• Medium Cabinet Type B cannot be installed with Paper Feed Unit TK1130 with Casters or Tall Cabinet Type A.

Paper Feed Unit TK1120

ID: 406730

• Provides an additional 550 sheets.
• Paper sizes up to 8.5" x 14".
• Paper weights up to 59 lb. Bond/120 lb. Index.
• Up to 4 paper feed units may be added to the mainframe for a maximum paper capacity of 2,850 sheets, one of these must be the Paper Feed Unit TK1130 with Casters.
• W x D x H (inches): 15.8 x 17.1 x 5.9
• W x D x H (mm): 401 x 434 x 150

Notes:

• 1. The assistance of a technician is recommended when installing all 4 optional Paper Feed Units.
• 2. Paper Feed Unit TK1120 cannot be installed with Tall Cabinet Type A.

Paper Feed Unit TK1120L

ID: 407189

• Provides an additional 550 sheets.
• Paper sizes up to 8.5" x 14".
• Paper weights up to 59 lb. Bond/120 lb. Index.
• This paper feed unit includes a lock for securing sensitive or expensive paper.
• Up to 4 paper feed units may be added to the mainframe for a maximum paper capacity of 2,850 sheets, one of these must be the Paper Feed Unit TK1130 with Casters.
• W x D x H (inches): 15.8 x 17.1 x 5.9
• W x D x H (mm): 401 x 434 x 150

Notes:

• 1. The assistance of a technician is recommended when installing all 4 optional Paper Feed Units.
• 2. Paper Feed Unit TK1120L cannot be installed with Tall Cabinet Type A.

Paper Feed Unit TK1120T

ID: 407190

• Provides an additional 550 sheets.
• Paper sizes up to 8.5" x 14".
• Paper weights up to 59 lb. Bond/120 lb. Index.
• This paper feed unit includes Teflon tape for improved feeding of label media.
• Up to 4 paper feed units may be added to the mainframe for a maximum paper capacity of 2,850 sheets, one of these must be the Paper Feed Unit TK1130 with Casters.
• W x D x H (inches): 15.8 x 17.1 x 5.9
• W x D x H (mm): 401 x 434 x 150

Paper Feed Unit TK1130 with Casters

ID: 406732

• For environments that want to maximize paper capacity. This paper feed unit has casters built-in so the device can be moved easily as well as stabilizers for safety.
• Provides an additional 550 sheets.
• Paper sizes up to 8.5" x 14".
• Paper weights up to 59 lb. Bond/120 lb. Index.
• W x D x H (inches): 29.7 x 28.6 x 8.5
• W x D x H (mm): 754 x 726 x 216

Notes:

• 1. The assistance of a technician is recommended required when installing all 4 optional Paper Feed Units.
• 2. Paper Feed Unit TK1130 with Casters cannot be installed with Tall Cabinet Type A or Medium Cabinet Type B.

Tall Cabinet Type A

ID: 100464FNG

• Raises the SP 5200DN/SP 5210DN to a comfortable height for floor-standing configuration. For use with printer base unit only.
• W x D x H (inches): 15.7 x 17.1 x 19.88
• W x D x H (mm): 399 x 434 x 505

Notes:

• Tall Cabinet Type A cannot be installed with Paper Feed Unit TK1120, Paper Feed Unit TK1120L, Paper Feed Unit TK1120T, Paper Feed Unit TK1130 with Casters or Medium Cabinet Type B.

Gigabit Ethernet Board Type C

ID: 406914

• Allows device to support a network data speed of 1,000 megabits per second, which increases the speed of data transmission.
• When this option is installed the printer's standard Ethernet and USB 2.0 ports are not available. Instead, use the Ethernet and USB 2.0 ports mounted on the Gigabit Ethernet Board.

Notes:

• 1. One open interface board slot is available. Gigabit Ethernet, Wireless LAN, Bluetooth Interface or File Format Converter may be installed.
• 2. Gigabit Ethernet Board Type C cannot be installed with IEEE802.11 a/g Interface Unit Type J, Bluetooth Interface Unit Type D or File Format Converter Type E.

Hard Disk Drive Type 4310

ID: 407105

• Option for the SP 5200DN only.
• Data Overwrite and HDD Encryption are available when the HDD is installed.

Notes:

• 1. Required when installing VM Card Type O.
• 2. Recommended when installing IPDS Unit Type 5200.

IEEE 802.11a/g Interface Unit Type L

ID: 403000

• This option allows you to connect the device wirelessly to the LAN.

Notes:

• IEEE 802.11a/g Interface Unit Type L cannot be installed with IEEE 1284 Interface Board Type A or Gigabit Ethernet Board Type C.

IPDS Unit Type 5200

ID: 406804

• For use in AS/400 environments.
• Intelligent Printer Data Stream (IPDS). As a "genuine" IPDS solution built on original IBM source code, our IPDS option provides more accurate interpretation of IPDS data. That means less errors and faster file processing than emulations. Plus, as an IBM partner your customers can be assured of fast problem resolution and timely upgrades.

Notes:

• 1. Memory Unit Type I 512MB is required when adding the IPDS option to the SP 5200DN.
• 2. Hard Disk Drive Type 4310 is recommended.

Memory Unit Type G 256MB

ID: 007094MIU

• Option for the SP 5200DN only.
• Increases the memory (RAM) and allows customers to use Extended Features. Maximum capacity is 768MB.

Notes:

• Memory Unit Type G 256MB cannot be installed with Memory Unit Type I 512MB.

Memory Unit Type I 512MB

ID: 003905MIU

• Option for the SP 5200DN only.
• Increases the memory (RAM) and allows customers to use Extended Features. Maximum capacity is 768MB.

Notes:

• Memory Unit Type I 512MB cannot be installed with Memory Unit Type G 256MB.

IEEE1284 Interface Board Type A

ID: 411699

• For environments that require Parallel connectivity.
• Allows device connection with legacy computer equipment.

Notes:

• IEEE1284 Interface Board Type A cannot be installed with IEEE802.11a/g/n Wireless Interface Type M2, File Format Converter Type E or USB Device Server Option Type M12.

ESP AC1 Power Filter

ID: ESPAC1

• The affordable ESP AC1 power filter provides multi-stage overload protection for output devices. Our Advanced Technical Support (ATS) recommends the use of overload protection products to minimize potential electrical interference with products.

Notes:

• The ESP AC1 power filter can not be installed with the ESP XG-PCS-15D.

VM Card Type O

ID: 406678

• Required to run Java based applications.
• Maximum capacity is 768MB.

Notes:

• Hard Disk Drive Type 4310 is required to add this option.
