SP 5300DNTL

Caster Table Type M24

ID: 407851

• Provides a platform with wheels for a floor standing configuration.
• Must be added when the device is configured with three or four optional paper feed units.
• Weight: 24.2 lbs. (11 kg)
• W x D x H (inches): 30.6 x 31.8 x 2.5
• W x D x H (mm): 777 x 808 x 64

Notes:

• 1. Caster Table Type M24 cannot be installed with the base unit, one or two optional paper feed units, Tall Cabinet Type I, or Medium Cabinet Type J.
• 2. Caster Table Type M24 can only be installed when the system is configured with three or four optional paper feed units. If three or four paper feed units are not added then this option cannot be added to your configuration.

Medium Cabinet Type J

ID: 52641

• Raises the base unit to a comfortable height for a floor-standing configuration when the system is configured with either one or two optional Paper Feed Units.
• Weight: 13.7 lbs. (6.2 kg)
• W x D x H (inches): 15 x 16.2 x 10
• W x D x H (mm): 381 x 411 x 254

Notes:

• 1. Medium Cabinet Type J cannot be installed with the base unit, three or four optional paper feed units, Tall Cabinet Type I, or Caster Table Type M24.
• 2. Medium Cabinet Type J can only be installed when the system is configured with one or two optional paper feed units. If one or two optional paper feed units are not added then this option cannot be added to your configuration.

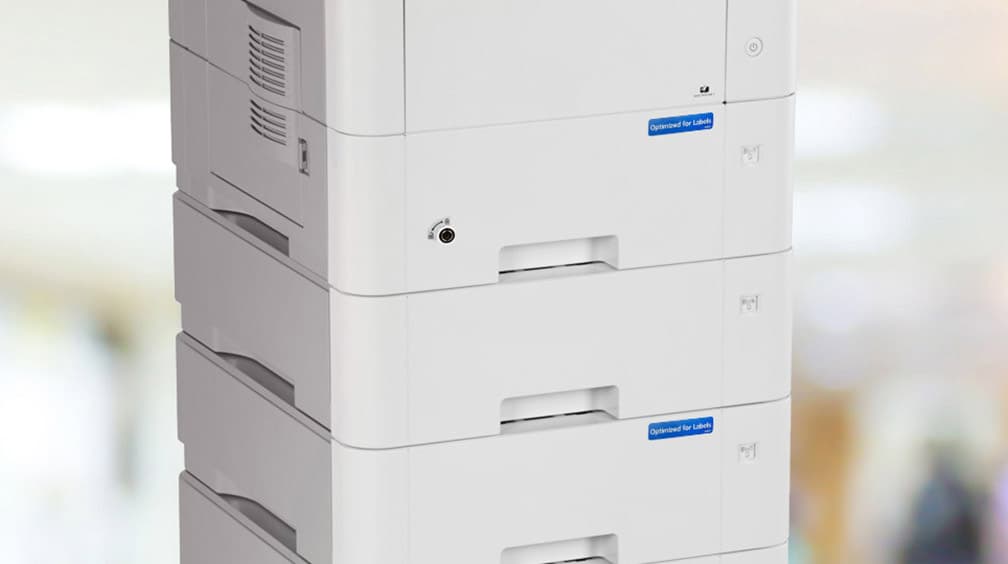

Paper Feed Unit PB1100

ID: 407850

• Provides an additional 500 sheets per paper tray.
• Paper sizes up to 8.5" x 14".
• Paper weights up to 32 lb. Bond/120 g/m².
• Weight: 8.8 lbs. (4 kg)
• W x D x H (inches): 15 x 16.1 x 4.8
• W x D x H (mm): 381 x 409 x 122

Notes:

• Caster Table Type M24 is required when the three or four optional Paper Feed Units are installed.

Paper Feed Unit PB1100LE

ID: 407915

• A Teflon enhanced paper tray.
• Provides an additional 500 sheets per paper tray.
• Paper sizes up to 8.5" x 14".
• Paper weights up to 32 lb. Bond/120 g/m².
• Weight: 8.8 lbs. (4 kg)
• W x D x H (inches): 15 x 16.1 x 4.8
• W x D x H (mm): 381 x 409 x 122

Notes:

• Caster Table Type M24 is required when the three or four optional Paper Feed Units are installed.

Paper Feed Unit PB1100TE

ID: 407914

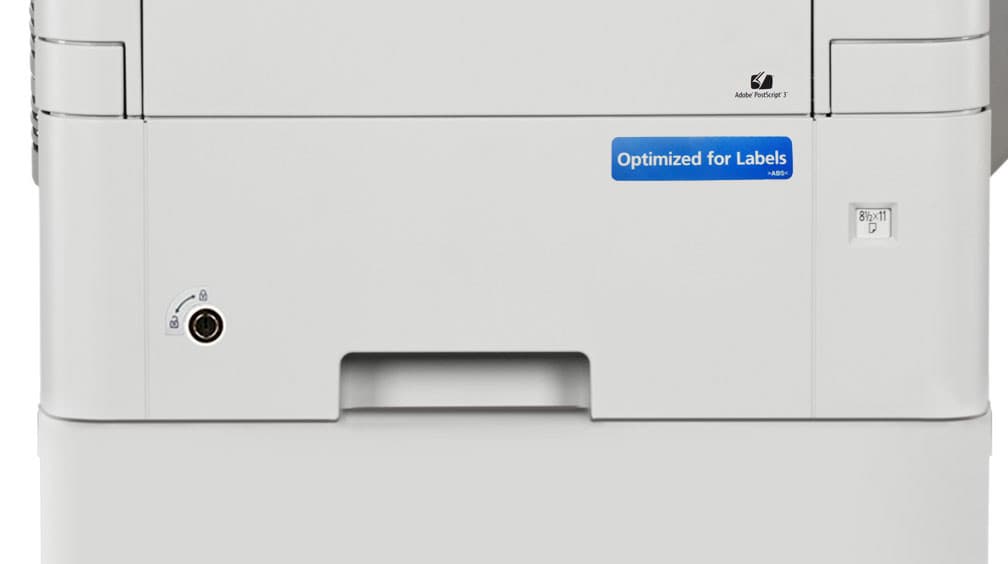

• A locking paper tray.
• Provides an additional 500 sheets per paper tray.
• Paper sizes up to 8.5" x 11".
• Paper weights up to 32 lb. Bond/120 g/m².
• Weight: 8.8 lbs. (4 kg)
• W x D x H (inches): 15 x 16.1 x 4.8
• W x D x H (mm): 381 x 409 x 122

Notes:

• 1. When Paper Feed Unit PB1100TE is added, the advanced security firmware on the MP 501SPF and MP 601SPF is not available.
• 2. Caster Table Type M24 is required when the three or four optional Paper Feed Units are installed.

Tall Cabinet Type I

ID: 52651

• Raises the base unit to a comfortable height for a floor-standing configuration.
• Weight: 22.5 lbs. (12.5 kg)
• W x D x H (inches): 15 x 16.2 x 20
• W x D x H (mm): 381 x 411 x 508

Notes:

• Tall Cabinet Type I cannot be installed with Paper Feed Unit PB1100, Paper Feed Unit PB1100TE, Paper Feed Unit PB1100LE, Medium Cabinet Type J, or Caster Table Type M24.

Hard Disk Drive Option Type P8

ID: MX407873RA

• Transforms the Printer into an information portal. The Hard Disk Drive (HDD) is required for Locked/Hold/Stored Print. Data Overwrite and HDD Encryption are available when the HDD is installed.

IEEE802.11 Interface Unit Type M24

ID: 407863

• Allows MFP device to connect to the network over WiFi. Useful for temporary sites and locations where cabling is impractical.

Extended USB Board Type M19

ID: 417566

• Required for printing from USB Type B port.

Notes:

• Extended USB Board Type M19 cannot be installed with IEEE 1284 Interface Board Type M19, IEEE 802.11a/g/n Interface Unit Type M19, or File Format Converter Type M19.

IEEE 1284 Interface Board Type M19

ID: 417596

• For environments that require parallel connectivity.
• Allows device connection with legacy computer equipment.

Notes:

• IEEE 1284 Interface Board Type M19 cannot be installed with IEEE 802.11a/g/n Interface Unit Type M19, File Format Converter Type M19, or Extended USB Board Type M19.

USB Device Server Option Type M19A

ID: 418105

• An interface board for adding an extra Ethernet port. If you install the USB Device Server Option, you can connect two Ethernet cables simultaneously: one to the machine's Gigabit Ethernet port and one to the Gigabit Ethernet port of USB Device Server Option. An IP address can be assigned to each connection and you can use one machine to print from different network segments.

Notes:

• USB Device Server Option Type M19A cannot be installed with IEEE 1284 Interface Board Type M19, IEEE 802.11a/g/n Interface Unit Type M19, File Format Converter Type M19, or Extended USB Board Type M19.

XPS Direct Print Option Type M24

ID: 408048

• This option enables direct printing of XPS format documents.

ESP S1 Power Filter

ID: ESPS1

• The affordable ESP S1 power filter provides multi-stage power protection for output devices. Our Advanced Technical Support (ATS) recommends the use of Power Protection products to minimize potential electrical interference with products.

Notes:

• ESP S1 Power Filter cannot be installed with the ESP XG-PCS-15D Power Filter.

ESP XG-PCS-15D Power Filter

ID: 006428MIU

• The ESP XG-PCS-15D power filter provides multi-stage power protection as well as line conditioning. Our Advanced Technical Support (ATS) recommends the use of Power Protection products to minimize potential electrical interference with products.

Notes:

• ESP XG-PCS-15D Power Filter cannot be installed with the ESP S1 Power Filter.

VM Card Type P8

ID: 407864

• The VM Card enables the installation of embedded software applications.

Notes:

• 1. When this option is configured with the SP C840DN, HDD Option Type P11 is required to add this option.
• 2. VM Card Type P8 cannot be installed with PostScript3 Unit Type P11, Camera Direct Print Card Type M19, or XPS Direct Print Option Type P11.
