| Projection System | Digital Light Processing (DLP) |
|---|---|
| Resolution | WXGA - 1280 x 800 dpi |
| Liquid Crystal Panel Size | 0.65" |
| Aspect Ratio | 16:10 |
| White Light Output Brightness | 4,100 lm |
| Color Reproduction | 1.07 billion colors (10 bit)/16,770,000 (8 bit) |
| Contrast Ratio | Native: 2000:1 High Contrast Mode: 8000:1 |
| Screen Size | 40" - 300" |
| Projection Modes | Standard, Rear, Ceiling, Rear Ceiling |
| Projection Distance | 4.3 ft - 23.6 ft |
| Lamp Type | High-Pressure Mercury |
| Lamp Life | Standard Mode: 3,000 hours; Eco Mode: 6,000 hours |
| Projection Lens | Fixed |
| Projection Ratio | 1.113 - 1.523 |
| Zoom Ratio | 1.36x |
| Zoom / Focus | Manual/Manual |
| Keystone Vertical/Horizontal | Manual: Vertical and Horizontal Only |
| Video Compatible Signal | NTSC, PAL, SECAM, PAL-M, PAL-60, NTSC 4.43 (60Hz/50Hz) |

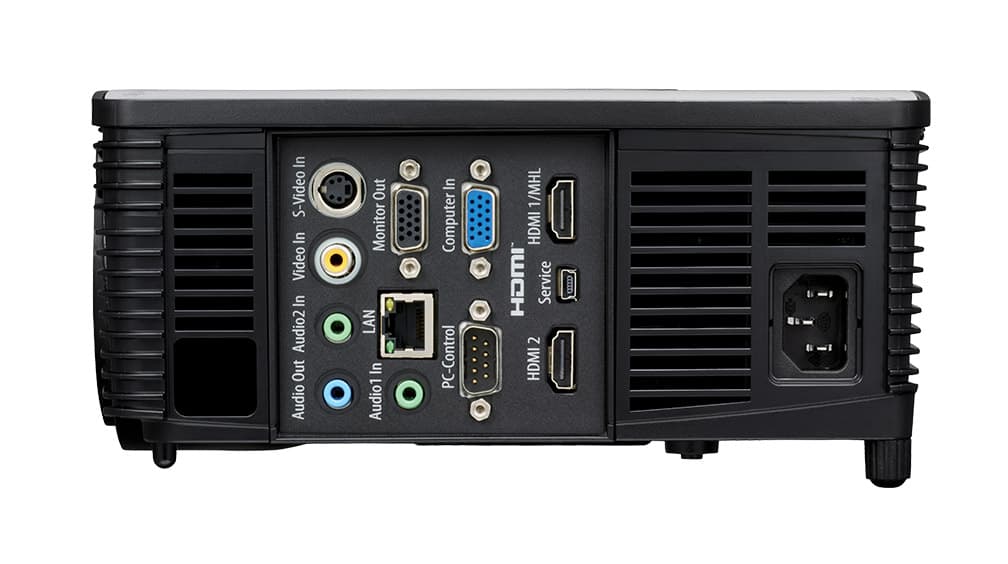

| Image Input | Input Interfaces: HDMI x 1 HDMI (MHL) x 1 VGA x 1 Composite x 1 (Video) S-Video |
| Image Output | VGA x 1 |
| Audio Input | 3.5 mm diameter stereo mini jack x 2 |
| Audio Output | 3.5mm stereo x1 (audio out) |
| PC Control | D-sub 9 x 1 (RS-232C) |
| USB | Type minB x1 |
| Wired LAN | RJ45 x 1 (for Network Management) |
| Advanced Network Utility | N/A |
| JPEG Conversion Tool | Windows Vista SP2 or later 32/64 bit (Ultimate/Business/HomePremium/HomeBasic); Windows 7 SP1 32/64 bit (Ultimate/Enterprise/Professional/Home Premium); Windows 8 and 8.1 Pro/Enterprise 32/64 bit; Windows 10 |
| Projector Management Utility | Windows Vista SP2 or later 32/62 bit (Ultimate/Business/HomePremium/HomeBasic); Windows 7 SP1 32/64 bit (Ultimate/Enterprise/Professional/HomePremium); Windows Server 2008 SP2 32/64 bit; Windows Server 2008R2 SP1 64 bit (standard edition); Windows 8 and 8.1 Pro/Enterprise 32/64 bit; Windows 10 |
| Features | AV Mute (Blank), Freeze, Re-size (Magnify), Keystone (Manual Only), Password Protection, Wall Color Mode, Kensington Lock, Eco Mode, 3D Projection Ready |
| Built-in Speaker | 10W Mono |
| Dimensions W x D x H | 12.37" x 8.8" x 4.15" (314.2 x 223.5 x 105.3 mm) |
| Weight | 7.06 lbs (3.2 kg) |
| Fan Noise | Standard Mode : 37 dB or less Eco Mode : 31 dB or less |
| Operating Environment | Temperature -4°F - 140°F; Humidity: 20 ~ 80% |
| Power Supply | 100/240V; 50 - 60Hz |
| Power Consumption | Standard Mode: 352W or less; Eco Mode: 280W or less |

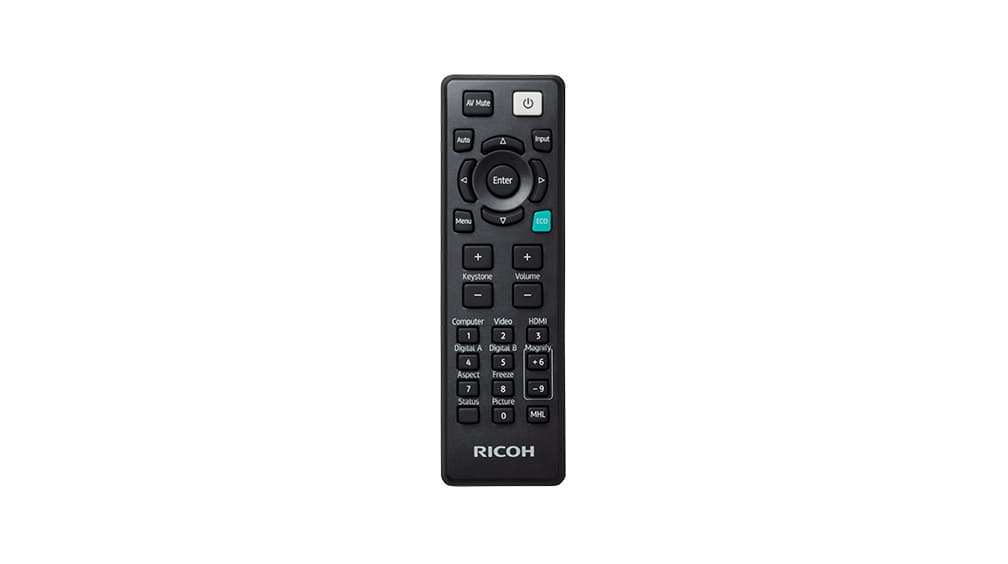

| Whats In the Box | CD-ROM with user manual, Quick Start Guide, RGB cable, Power cord, Warranty sheet and registration (US only), Remote control and batteries, Carrying Case |
