Maintenance & Parts
| Replacement Lamp - Part Number | Type 17 - 512822 Note: Lamps are consumable products and therefore are not covered by the projector’s warranty. |
|---|---|
| 3D Glasses - Part Number | Type 2 - 512511 Note: Native support for Frame Sequential 3D format. Other sources may require a converter that is not provided. |
| Projection System | Single Chip Digital Light Processing (DLP) |
| Resolution | XGA - 1024 x 768 dpi (786,432 Picture Elements) |
| Liquid Crystal Panel Size | 0.55" |
| Aspect Ratio | 4:3 |
| White Light Output Brightness | 3,500 lm |
| Color Reproduction | 1.07 billion colors |
| Contrast Ratio | 13000:1 |
| Screen Size | 30" - 400" |
| Projection Modes | Front (Standard), Rear, Rear Ceiling, Front Ceiling, 360° Tilt Free |
| Projection Distance | 26.7" - 568.2" |
| Lamp Type | High Pressure Mercury (250W) |
| Lamp Life | Standard Mode: 3,500 hours; Eco Mode: 5,000 hours |
| Projection Ratio | 1.11 - 1.73 |
| Lens Focal Length | 0.51" x 0.77" (13.0 - 19.6 mm) |
| Zoom Ratio | 1.5 Optical Zoom |
| Zoom / Focus | Supported/Automatic |
| Video Compatible Signal | NTSC, PAL, SECAM, HDMI, PAL-M, PAL-N, PAL-60, NTSC 4.43, 60 Hz (Mono), 50 Hz (Mono) |
| Analog RGB Compatible Scanning Frequency | Horizontal: 15 - 100 kHz Vertical: 23 - 85 Hz |
| USB Memory Compatible File Format | JPEG, MPEG2, MPEG4 |
| Image Input | Mini D-sub 15 pin x 1 |
| Image Output | Mini D-sub 15 pin x 1 (input and change over) |
| Video Input | RCA 1 pin x 1 |
| Audio Input | 3.5 mm diameter stereo mini jack x 1 |
| Audio Output | 3.5 mm diameter stereo mini jack x 1 |
| HDMI | HDMI Terminal x 1 |
| USB | USB 2.0 Type A x 1 (JPEG/MPEG) |
| Wired LAN | 10BASE-T/100BASE-TX/1000BASE-T x 1 (RJ45) |
| Wireless LAN | IEEE 802.11 a/b/g/n compliant |
| Advanced Network Utility | Windows Vista SP2 (Ultimate/Business/HomePremium/HomeBasic) 32/64bit; Windows 7 SP1 (Ultimate/Enterprise/Professional/ HomePremium) 32/64bit; Windows 8 Pro/Enterprise 32/64bit; Windows 8.1/Pro/Enterprise 32bit/64bit; Mac OS X (10.7 - 10.10 |
| JPEG Conversion Tool | Windows XP Professional X64; Windows Vista SP2 (Ultimate/Business/HomePremium/HomeBasic) 32/64bit; Windows 7 SP1 (Ultimate/Enterprise/Professional/HomePremium) 32/64bit; Windows 8 Pro/Enterprise 32/64bit |
| Projector Management Utility | Windows Vista SP2 (Ultimate/Business/HomePremium/HomeBasic) 32/64bit; Windows 7 SP1 (Ultimate/Enterprise/Professional/ HomePremium) 32/64bit; Windows Server 2008 SP2 32bit/64bit; Windows Server 2008R2 SP1 64bit; Windows 8 Pro/Enterprise 32/64bit; Windows 8.1 Pro/Enterprise 32bit/64bit |
| Features | AV Mute (Blank), Freeze, Re-size (Magnify), Auto Keystone Correction (vertical/horizontal), Digital Zoom (80% - 100% Reduction), Password Protection, Wall Color Mode, Key Lock, Security Bar, Kensington Lock, User Logo, Multi-screen Projection (1 PC to 4 Projectors), Eco Mode, Automatic Brightness Control, Carbon Meter, Closed Captioning, Color Universal Design, Presentation Timer, Blu-ray 3D Projection Ready, Timer Set On/Off, Interactive Ready, Projector Management, Digital Camera, Simultaneous with Wired and Wireless, Miracast, Crestron, AMX and DLNA Compatible, Firmware Update, PJLink, PC Free Presentation (JPEG/MPEG2/MPEG4 via USB) |
| Built-in Speaker | 10W Mono |
| Supported Languages | Arabic, Chinese (Traditional), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Spanish, Swedish, Thai, Turkish |
| Dimensions W x D x H | 11.69" x 9.25" x 3.93" (297 x 235 x 100 mm) |
| Weight | Approx. 6.8 lb. (3.1 kg) |
| Fan Noise | Standard Mode: 38 dB or less; Eco Mode: 32 dB or less |
| Operating Environment | Temperature: 41°F to 95°F (5°C to 35°C); Humidity: 30% to 70% (no condensation) |
| Power Supply | 100/240V; 50 - 60Hz |
| Power Consumption | Less than 316W: Eco Mode: 209W: Standby Network On: Less than 1.4W; Standby Network Off: 0.3W |
| Whats In the Box | Cables: RGB Cable (3m) and 3-pin Power Cord (3m) CD-ROM: Instruction Manual, Network Utility, JPEG Conversion Tool, Projector Management Utility,Instruction Manual for Projector Management Utility Manuals: Read This First, Start Guide, Warranty Sheet and Customer Registration Soft-side Carrying Case: Interior Size: 4.7" x 14.5" x 10.6" (120 x 370 x 270 mm); Exterior Size: 5.1" x 15" x 11.4" (130 x 380 x 290 mm) Remote Control |
eBeam Edge Bluetooth
ID: 007165MIU
PJ Interactive Kit Type 2 Pen
ID: 431197
Ricoh Interactive Tool Kit Type 2
ID: 512711
Accessories Packaged with Projector
ID: itb-pj-3351
- Cables: RGB Cable (3m) and 3-pin Power Cord (3m)
- CD-ROM: Instruction Manual, Network Utility, JPEG Conversion Tool, Projector Management Utility, Instruction Manual for Projector Management Utility
- Manuals: Read This First, Start Guide, Warranty Sheet and Customer Registration
- Soft-side Carrying Case: Interior Size: 4.7" x 14.5" x 10.6" (120 x 370 x 270 mm); Exterior Size: 5.1" x 15" x 11.4" (130 x 380 x 290 mm)

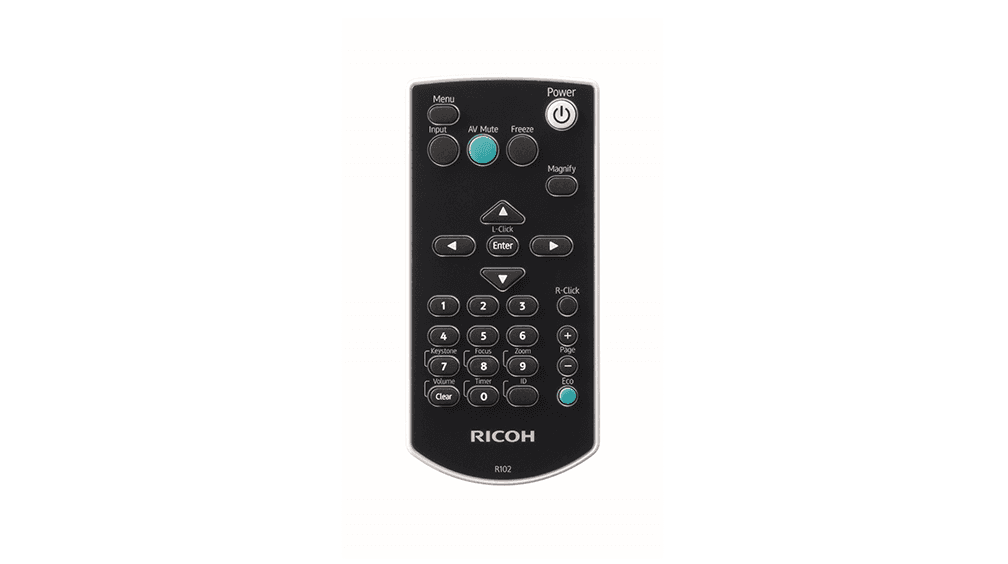

- Remote Control: Yes
