| Replacement Lamp - Part Number | 512771 Note: Lamps are consumable products and therefore are not covered by the projector’s warranty. |
|---|---|
| 3D Glasses - Part Number | 512511 Note: Native support for Frame Sequential 3D format. Other sources may require a converter that is not provided. |
| Projection System | Single Chip Digital Light Processing (DLP) |
| Resolution | XGA - 1024 x 768 dpi |
| Liquid Crystal Panel Size | 0.55" |
| Aspect Ratio | 4:3 |
| White Light Output Brightness | 4,000 lm |
| Contrast Ratio | 2200:1 *10,000:1 |
| Screen Size | 30" - 300" |
| Projection Distance | 48" - 472" (1.2 - 12 meters) |
| Lamp Type | High-pressure Mercury (260W) |
| Lamp Life | Standard Mode: 3,000 hours Eco Mode: 4,000 hours |
| Projection Ratio | 1.95 - 2.15:1 |
| Zoom Ratio | 1.1 |
| Zoom / Focus | Manual/Manual |

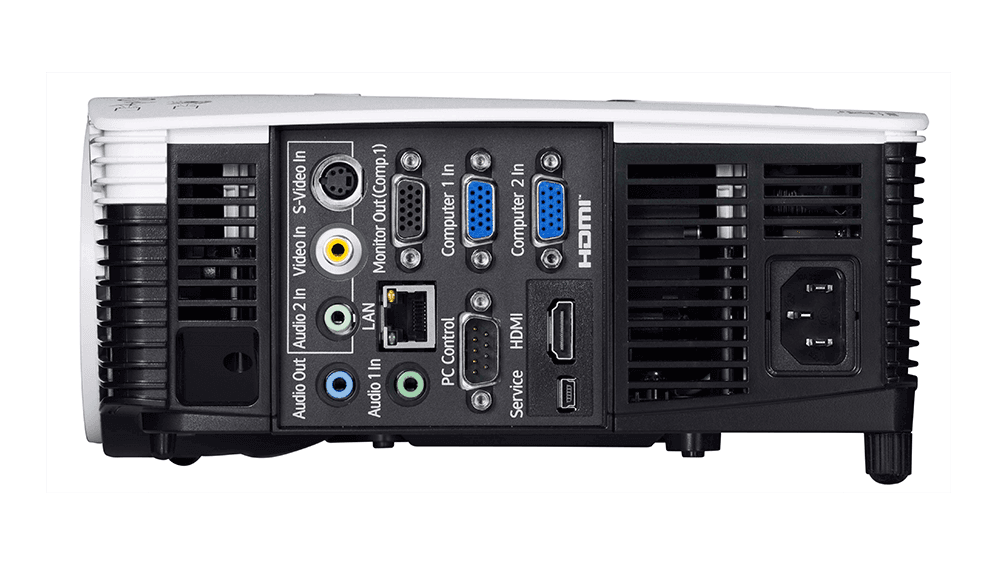

| Image Input | Mini D-sub 15 x 2 |
| Image Output | Mini D-sub 15 x 1 |
| Video Input | RCA Jack x 1 |
| S - Video | Mini DIN 4 x 1 |
| Audio Input | Mini Jack x 1 |
| Audio Output | Mini Jack x 1 |
| HDMI | HDMI x 1 |
| PC Control | D-sub 9 x 1 (RS-232C) |
| USB | Type minB x 1 (for firmware update) |
| Wired LAN | RJ45 x 1 (for Network Management) |
| Wireless LAN | N/A |
| Advanced Network Utility | N/A |
| JPEG Conversion Tool | N/A |
| Projector Management Utility | Windows 7, Windows Vista (64-bit), Windows Vista, Windows 7 (64-bit), Windows XP |
| Features | Adjuster, AV Mute, Freeze, Re-size (Magnify), Wall Color Mode, Security Bar, Kensington Lock, Eco Mode, 3D Projection Ready (for use with optional Ricoh PJ 3D Glasses Type 2) |
| Built-in Speaker | 10W Mono |
| Dimensions W x D x H | 12.37" x 8.8" x 4" (314.2 x 223.5 x 101.7 mm) |
| Weight | 6.6 lbs. (3.0 kg) |
| Fan Noise | Standard Mode: 37 dB or less Eco Mode: 34 dB or less |
| Operating Environment | Temperature 5 ~ 40° C; Humidity: 20 ~ 80% |
| Power Supply | 100/240V; 50 - 60Hz |
| Power Consumption | Standard Mode: 363W; Eco Mode: 308W; Standby Network On: 10W; Standby Network Off: Less than 0.5W |
