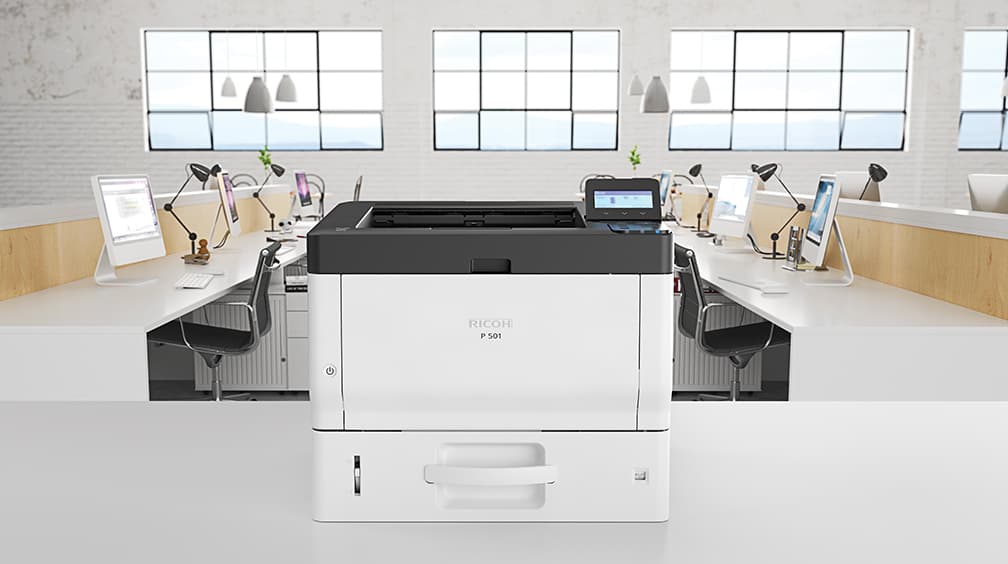

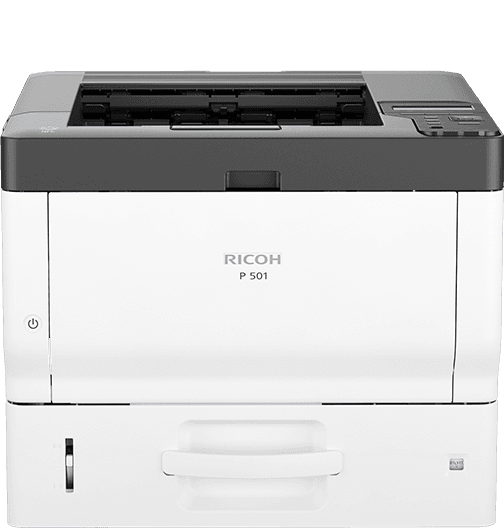

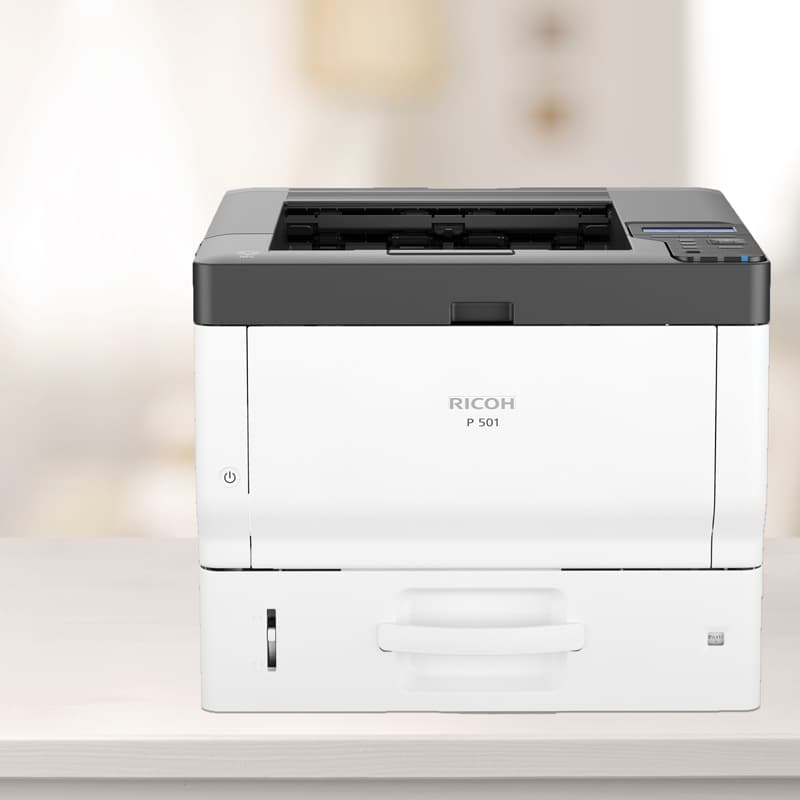

Find a better place for a faster printing pace

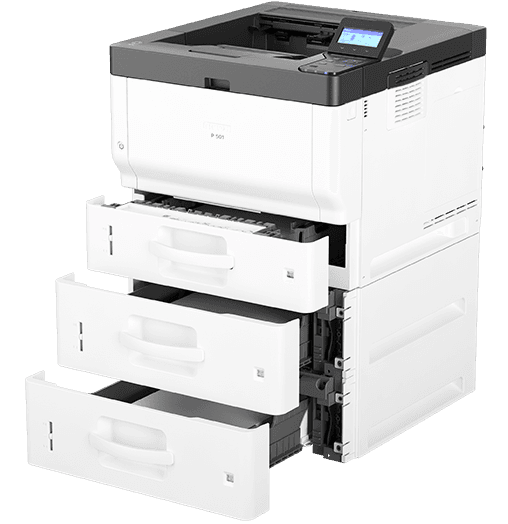

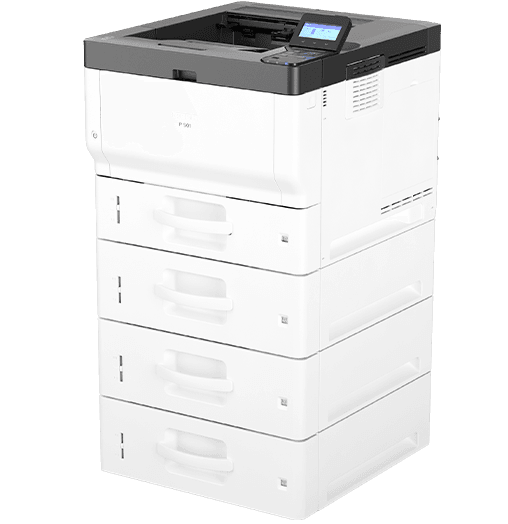

Choose the affordable and compact RICOH P 501 Black and White Printer to handle everyday print jobs from the convenience of your desktop. Print up to 45 pages per minute (ppm) at up to 1200 dpi to share your best ideas clearly and quickly. Add multiple paper trays, without expanding your footprint, to increase paper capacity to 2,100 sheets.
Meet every challenge effortlessly

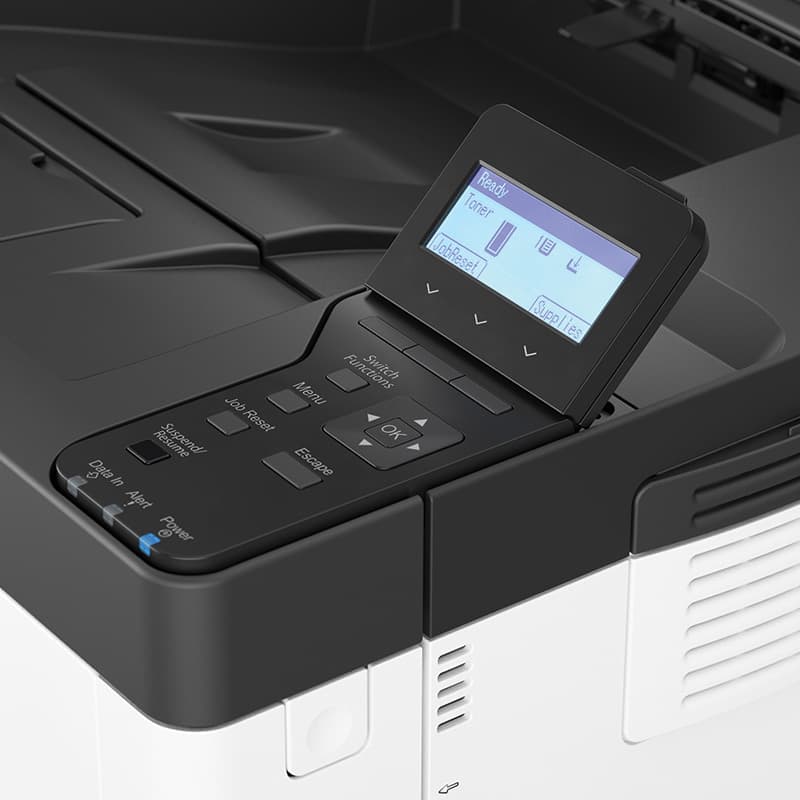

Start printing quickly with recovery from Sleep Mode in less than 10 seconds. Then keep working — even when multiple users send multiple jobs to the printer — with the robust controller and powerful processor. When at the P 501 Black and White Printer, check system status at a glance and speed through printer functions using the four-line LCD panel.

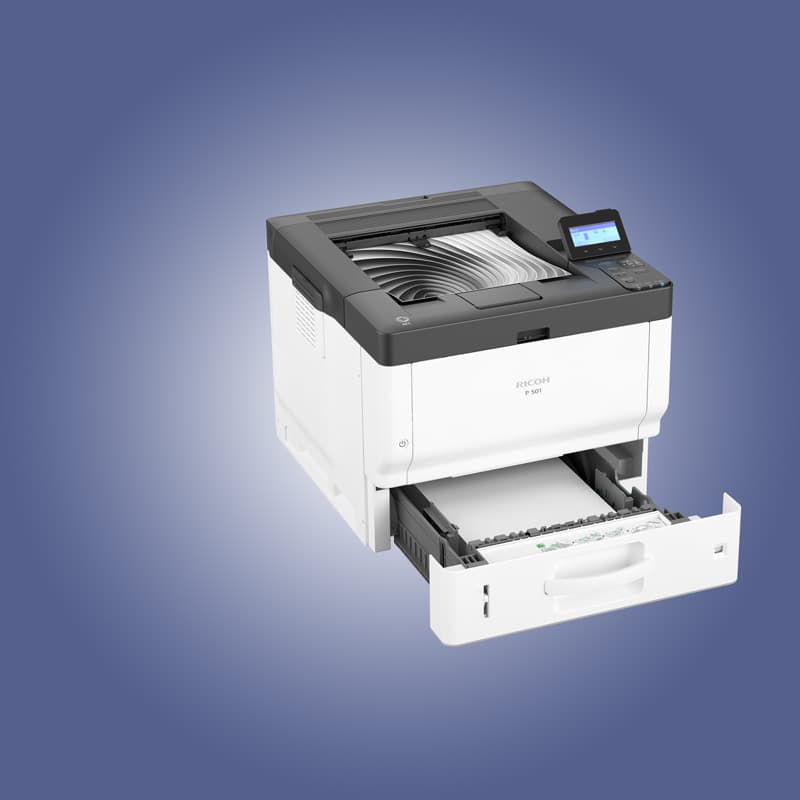

Make media fit your audience
Discover better ways to share your best ideas. Leverage LED imaging technology to maintain crisp clarity from the first page to the last. Print on media up to 8.5" x 14" and 43 lb. Bond/90 lb. to produce a wide range of jobs in-house. Use the 100-Sheet Bypass Tray to accommodate special stocks, weights and sizes, including envelopes, labels and more.
Be mobile, stay productive
You use your smartphone or tablet to collaborate and share information daily. Now, you can use it to print. Download the RICOH Smart Device Connector app to grab and print information directly from your personal mobile device without utilities or drivers. With the app, a smart device can serve as your own front-end, wireless interface for printing documents, emails and more on the P 501.
Fortify your data security
With the P 501 User Authentication capability, you can use Locked Print to hold documents until the owner releases it. When equipped with the optional Hard Disk Drive, the DataOverwriteSecurity System (DOSS) erases latent information left on the hard drive.
Track your performance
Capture critical details about users and activity. Use RICOH Device Manager NX Lite to check print settings, collect metered data, track levels, status and more — whether the P 501 is used as a standalone device or in a fleet of printers. You can also manage print queues and change settings and configurations easily from the desktop.
Be energy-efficient and eco-friendly
Designed to run quietly and efficiently on the desktop, the P 501 Black and White Printer is ENERGY STAR ® certified and meets EPEAT ® Gold criteria* while achieving Typical Electricity Consumption of 0.499 kWh/week. Cut paper usage with default duplex printing and lower electricity costs with Energy Save Mode. Plus, Ricoh's product stewardship and recycling makes it easy to return your used supplies.
*EPEAT Gold rating is applicable only in the USA.
*EPEAT Gold rating is applicable only in the USA.

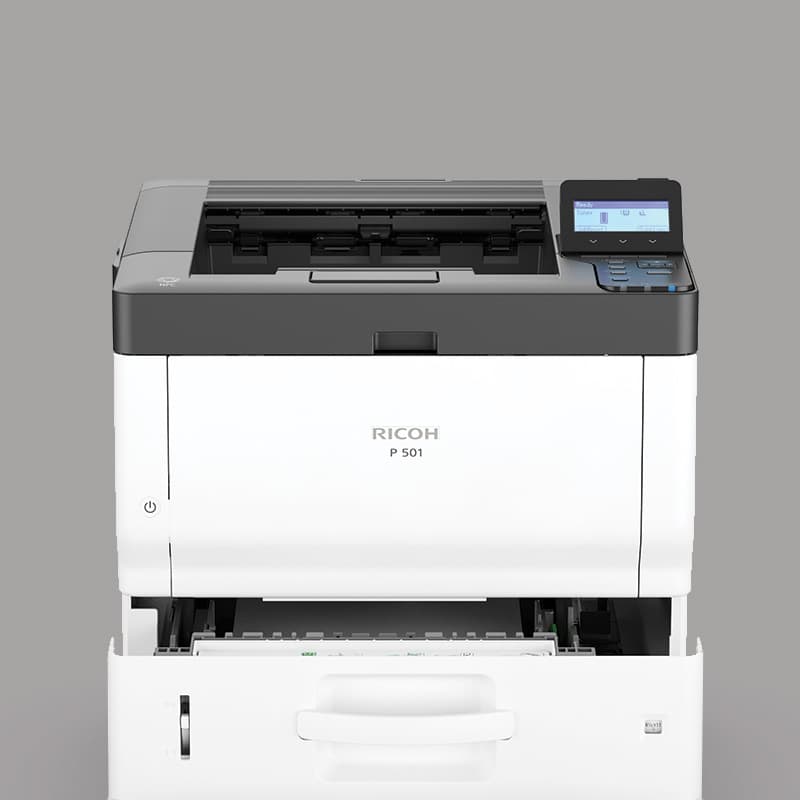

Simplify everyday management and maintenance
At Ricoh, we believe you should spend more time finding your next big idea than figuring out how to fix your printer. That's why we designed the P 501 for long-lasting performance. If there is a misfeed, you can locate it and access it quickly without removing the fusing unit. With Ricoh's Web Image Monitor, you can check system status, change settings and expedite maintenance — all from your desktop.
Need more information?
Learn more about the RICOH P 501 Black and White Printer and how it may fit your business.
| Configuration | Desktop |
|---|---|
| Technology | LED |
| Operation Panel | 4-line LCD |
| Black & White Speed | 45 ppm (Letter)/43 ppm (A4) |
| Maximum Duty Cycle | 150,000 prints |
| First Print Speed | 5 seconds |
| Warm-Up Time | 19 seconds |
| Print Resolution | 1,200 x 1,200 dpi |
| Standard Paper Capacity | 500 sheets + 100 sheet bypass tray |
| Maximum Paper Capacity | 2,100 sheets |
| Supported Paper Sizes | 5.5” x 8.5” - 8.5” x 14” (A6-A4, B6) |
| Supported Paper Weights | Paper tray(s): 14 - 58 lb. Bond (52 - 220 g/m²) Optional paper tray(s): 14 - 58 lb. Bond (52 - 220 g/m2) Bypass tray: 14 - 68 lb. Bond (52 - 220 g/m²) |
| Supported Paper Types | Plain, Recycled, Special, Colored, Letterhead, Cardstock, Pre-printed, Bond, Coated, Envelope, Label, OHP |
| Power Requirements | 120-127V/12A 60Hz |
| Power Consumption | Max: Less than 1,360 W |
| Typical Energy Consumption (TEC) | 0.499 kWh/week TEC value is measured based on the ENERGY STAR Ver.3.0 test method. |
| ENERGY STAR Status | Certified |
| EPEAT status | Gold |
| Dimensions W x D x H | 14.76" x 16.22" x 12.24" (375 x 412 x 311mm) |
| Weight | 42.5 lbs. (19.3 kg) |
Hard Disk Drive Option Type P18
ID: 418438
- The Hard Disk Drive (HDD) is required for Locked/Hold/Stored Print. Data Overwrite and Encryption are available when the HDD is installed.
Caster Table Type M34
ID: 418143
- The caster table must be added to the configuration when three optional paper feed units are installed. It provides a platform with wheels to easily move the device.
Medium Cabinet Type P
ID: 52005
- Raises the height of the system while providing businesses with a convenient option for the storage of supplies and paper.
- Can only be configured with either one or two optional paper feed units.
- Weight: 35.3 lbs. (16 kg)
- W × D × H (inches): 14.6 × 15.4 × 11.2
- W × D × H (mm): 371 × 391 × 284
Paper Feed Unit PB1110
ID: 418080
- Provides an additional 250 sheets.
- Paper sizes up to 8.5" x 14".
- Paper weights up to 14 lb. Bond/120 lb. Index.
- Weight: 10.58 lbs. (4.8 kg)
- W × D × H (inches): 14.6 × 15.5 × 3.8
- W × D × H (mm): 371 × 394 × 97
Paper Feed Unit PB1120
ID: 418081
- Provides an additional 500 sheets.
- Paper sizes up to 8.5" x 14".
- Paper weights up to 14 lb. Bond/120 lb. Index.
- Weight: 12.13 lbs. (5.5 kg)
- W × D × H (inches): 14.6 × 15.5 × 4.9
- W × D × H (mm): 371 × 394 × 124
Notes:
- Caster Table Type M34 is required when three optional paper feed units are installed.
Tall Cabinet Type Q
ID: 52006
- Raises the height of the system while providing businesses with a convenient option for the storage of supplies and paper.
- Can only be configured with the standard configuration.
- Weight: 49.8 lbs. (18.5 kg)
- W × D × H (inches): 14.6 × 15.4 × 20.8
- W × D × H (mm): 371 × 391 × 528
IEEE802.11 Interface Unit Type M24
ID: 407863
- Allows MFP device to connect to the network over WiFi. Useful for temporary sites and locations where cabling is impractical.
IPDS Unit Type P18
ID: 418442
- For use in AS/400 environments.
Notes:
- 1. Hard Disk Drive Option Type P18 must be selected to add this option.
- 2. Target availability is December 2019.
PostScript3 Unit Type P18
ID: 418439
- Genuine Adobe® PostScript®3™. Recommended for printing more complex B&W and PDF files.
Notes:
- This option is available for customers who require True Adobe® workflows like Photoshop®, Illustrator® and PDF/X as well as additional font support. When enabled on the MFP, the standard PostScript3 Emulation will be disabled.
USB Device Server Option Type M19A
ID: 418105
- An interface board for adding an extra Ethernet port. If you install the USB Device Server Option, you can connect two Ethernet cables simultaneously: one to the machine's Gigabit Ethernet port and one to the Gigabit Ethernet port of USB Device Server Option. An IP address can be assigned to each connection and you can use one machine to print from different network segments.
Notes:
- USB Device Server Option Type M19A cannot be installed with IEEE 1284 Interface Board Type M19, IEEE 802.11a/g/n Interface Unit Type M19, File Format Converter Type M19, or Extended USB Board Type M19.
ESP XG-PCS-15D Power Filter
ID: 006428MIU
- The ESP XG-PCS-15D power filter provides multi-stage power protection as well as line conditioning. Our Advanced Technical Support (ATS) recommends the use of Power Protection products to minimize potential electrical interference with products.
Notes:
- ESP XG-PCS-15D Power Filter cannot be installed with the ESP S1 Power Filter.
VM Card Type P18
ID: 418065
- The VM Card enables the installation of embedded software applications.
Notes:
- Hard Disk Drive Option Type P18 must be selected to add this option.
